Uncooled 256x192 12μm Radiometric Infrared Thermal Camera Module for AIoT
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 256x192 | NETD | ≤45mK |
|---|---|---|---|
| Pixel Pitch | 12μm | Size | 15x13x6.83mm |
| Spectral Range | 8~14μm | Frame Rate | 1~30Hz |
| High Light | 256x192 Infrared Thermal Camera Module,VOx Infrared Thermal Camera Module,30Hz Infrared Camera Module |
||
Product Description

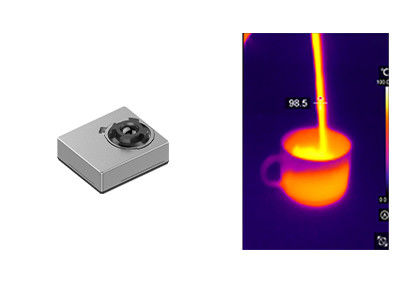

TIMO256 Uncooled LWIR Thermal Module
Small Size 256x192 / 12μm Uncooled Focal Plane Array LWIR Infrared Thermal Camera Module
Product Description
TIMO256 is a tiny thermal sensor module with ultra compact, simplifying package design. It integrates optical lens, 256x192 / 12μm wafer level package (WLP) long wave infrared detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.
TIMO256 infrared camera module is fully optimized with small size, light weight & low price (SWaP) to meet the strict requirements of customers in the infrared thermal imaging applications, but it still provides better image quality. Its super miniature structure, compact package dimension and ultralow power consumption are convenient to be integrated into various inspection tools, security monitoring cameras or handheld infrared thermal imagers.
Main Features
- Focal plan array VOx microbolometer
- 256x192 / 12 µm uncooled long wave infrared (LWIR) detector
- Low power consumption micro thermal camera module
- High precision human body / industrial temperature measurement
Product Specifications
| Model | TIMO-256 |
| IR Detector Performance | |
| Resolution | 256x192 |
| Pixel Pitch | 12μm |
| Spectral Range | 8~14μm |
| NETD | ≤45mK |
| Lens Type | WLO |
| Focus Mode | Fixed Zoom |
| HFOV | 53°±1° |
| Depth of Field | 10cm to Infinity |
| Frame Rate | 1~30Hz (Customizable) |
| Temperature Measurement | |
| Temperature Range | -20°C ~ +120°C (Customizable) |
| Temperature Accuracy | Customizable (Meet the Requirements of Body or Industrial Thermography) |
| Interface/Control | |
| AVDD | 3.6V±0.05V |
| VSK/VDET | 5.0±0.05V |
| DVDD | 1.8V±0.05V |
| Interface | Digital Interface |
| Power Consumption | 70mW |
| Physical Characteristics | |
| Dimension (mm) | 15x13x6.83 (The Specifications Shall Prevail) |
| Operation Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
Industrial Applications
The TIMO256 uncooled LWIR thermal module is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.
Our Product Line
FAQs
1. What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2. What can infrared imaging be used for?
-Night vision
-Search & rescue
-Non-destructive test
-Epidemic prevention
-Thermography
-Security & monitoring
-Firefighting
…
3. What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
