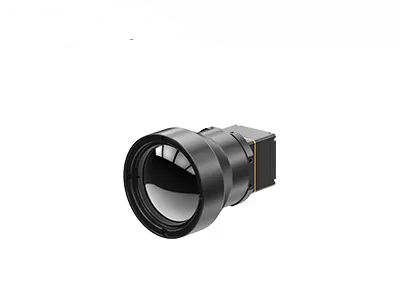

Compact LWIR Thermal Imaging Module TWIN612 For Firefighting & Rescue
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Spectral Range||8~14μm||Pixel Pitch||12μm|
Firefighting Thermal Imaging Module,
Rescue Thermal Imaging Module,
Compact LWIR Thermal Camera Module
LWIR Thermal Imaging Module With 640x512 12μM Infrared Detectors For Outdoors
TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD＜40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.
With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.
The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.
Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W
|IR Detector Performance|
|Image Display||11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)|
|Standard External Interface||50pin_HRS|
|Typical Power Consumption||0.8W|
|Operating Temperature Range||-10℃~50℃|
|Temperature Measurement Range||-20℃~150℃, 0℃~550℃|
|Temperature Measurement Accuracy||Greater of ±2℃ or ±2%|
|SDK||Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature|
|Dimension (mm)||25.4×25.4×35 (Without Lens)|
|Weight||25g (Without Lens)|
|Vibration||5.35grms, 3 Axis|
|Shock||Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction|
|Optional Lens||Fixed Athermal: 13mm|
The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
1.Are there any limitations to thermal imaging?
Yes, there are some limitations to thermal imaging. Firstly, it doesn’t provide detailed images like a regular camera, as it focuses on temperature differences rather than visual details. Additionally, certain materials, such as glass or reflective surfaces, can interfere with accurate temperature measurements. Lastly, thermal imaging cannot see through solid objects or walls.
2.Is thermal imaging safe?
Thermal imaging is generally considered safe as it is a non-contact and non-invasive technology. It does not emit any radiation itself and only detects the infrared radiation emitted by objects.
3.Can thermal imaging be used for medical purposes?
Yes, thermal imaging is used in some medical applications. It can help identify areas of inflammation, monitor blood flow, detect temperature abnormalities, and aid in diagnosing conditions such as breast cancer, vascular diseases, and musculoskeletal injuries. However, it is important to note that thermal imaging is not a substitute for traditional diagnostic tools and should be used in conjunction with other medical tests.
