Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm

I'm Online Chat Now

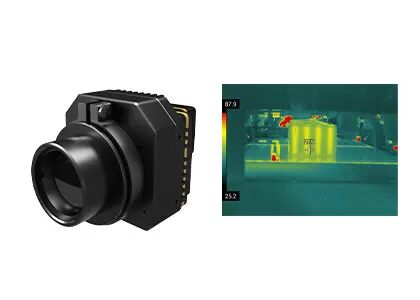

Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm

Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm
Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm

Large Image :  Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Technology: Infrared Material: Vanadium Oxide
Size: 44.5x44.5x36.6mm Resolution: 640x512 / 17μm
NETD: <30mK Spectral Range: 8~14μm
High Light:

30mK Ir Camera Module

,

Ir Camera Module 640x512

,

Thermal Imaging Core 640x512

PLUG617R LWIR Thermal Imaging Module



High Quality, Stable Performance 640x512 / 17μm Infrared Camera Module for Building Inspection



Product Description



PLUG617R is an uncooled thermal camera module carries a self-developed VOx 640x512 / 17μm uncooled FPA infrared detector. It can detect the temperature of objects from far away with the temperature measurement range from -20℃ to 500℃ and an average temperature accuracy of ±2℃.



PLUG617R infrared thermal sensor module is useful for identifying heat sources in very dark or otherwise obscured places. It is widely used in areas such as Predictive Maintenance, Metallurgical Petrochemical, Machine Vision, Building Inspection, New Energy, Rail Traffic and other industries.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm



Industrial Applications



The PLUG617R uncooled thermal camera module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm 0



Exhibitions



Building Inspection IR Camera Module Thermal Imaging Core 640x512 / 17μm 1



FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
