HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection

I'm Online Chat Now

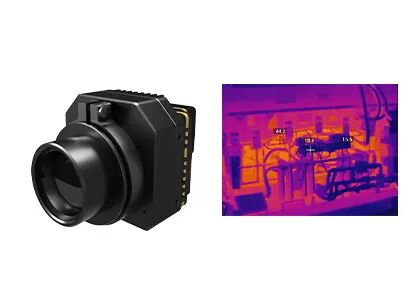

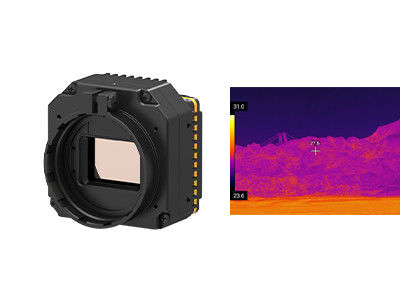

HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection

HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection
HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection

Large Image :  HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG612R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 12μm NETD: <30mK
Spectral Range: 8~14μm Size: 44.5x44.5x36.6mm
High Light:

HD LWIR Thermal Camera

,

LWIR Thermal Camera Core

,

640x512 LWIR Thermal Camera

PLUG612R Thermal Camera Core



High Definition LWIR 640x512 / 12μm Infrared Thermal Camera Core for Electricity Power Inspection



Product Description



PLUG612R thermal imaging module covers long wavelength from 8 to 14μm with a resolution of 640x512 and pixel size at 12μm VOx microbolometer infrared detector.



As a leading thermal uncooled IR detector and thermal sensor module supplier, Global Sensor Technology (GST) has provided the customers with various mature and stable infrared thermal imaging solutions. It’s easier for the thermal imaging camera modules developed by GST to be integrated into more terminal products and greatly reduces the cost for customers.



Main Features



- Resolution: 640x512
- Pixel Pitch: 17 μm
- Array Type: Uncooled Microbolometer
- Thermal Sensitivity: NETD<30 mK
- Spectral Band: 8μm to 14μm



Product Specifications



Model PLUG612R
IR Detector Performance
Resolution 640x512
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video Y16/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤85g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 13mm/19mm/24mm



Industrial Applications



The PLUG612R thermal imaging module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection 0



IR Detector Solutions



HD LWIR Thermal Camera Core 640x512 / 12μm for Electricity Power Inspection 1



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
