Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography

I'm Online Chat Now

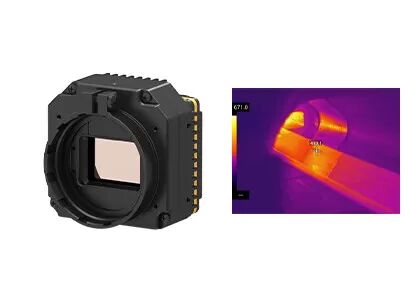

Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography

Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography
Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography

Large Image :  Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: PLUG617R
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Temperature Range: -20℃~+550℃ (Customizable) Temperature Accuracy: ±2℃ Or ±2%
Resolution: 640x512/17μm NETD: <30mK
Spectral Range: 8~14μm LW Size: 44.5x44.5x36.6mm
High Light:

Infrared Thermal Camera Module 640x512

,

30mK Infrared Thermal Camera Module

PLUG617R Uncooled Thermal Core



640x512 / 17μm Infrared Thermal Module, Thermal Imaging Camera Core for Industrial Thermography



Product Description



PLUG617R uncooled thermal camera module consists of 640x512 / 17μm uncooled fpa infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.



PLUG617R is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.



As a leading thermal camera module manufacturers, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm



Industrial Applications



The PLUG617R thermal imaging module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography 0



Global Sensor Technology Team



Infrared Thermal Camera Module Core 640x512 / 17μm for Industrial Thermography 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST infrared detectors / thermal camera cores are widely used in many industries such as:
- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention
- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety
- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue
- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation
- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol
- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles
- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots
- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research
