640x512 12µM Uncooled Thermal Camera Core For Wildlife Observation

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TWIN612/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 640x512 Power Consumption 0.8W
Spectral Range 8~14μm Pixel Pitch 12μm
NETD <40mK Frame Rate 25Hz/30Hz
High Light

Wildlife Observation Thermal Core


Uncooled 12uM Thermal Camera Core


Wildlife LWIR Camera Core

Leave a Message
Product Description

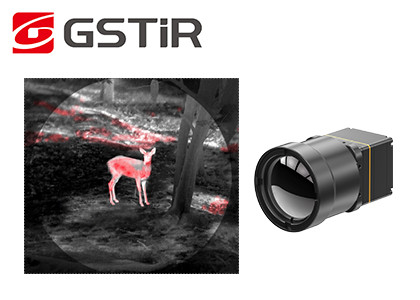

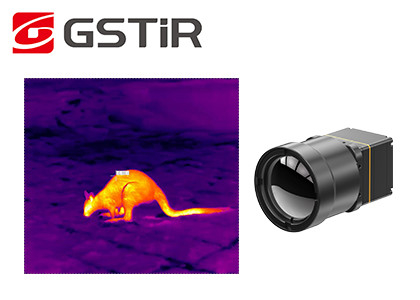

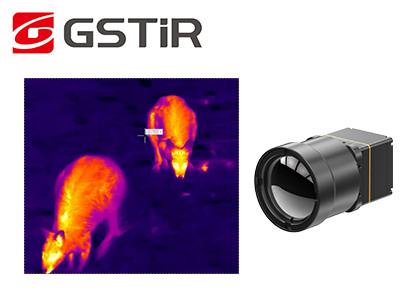

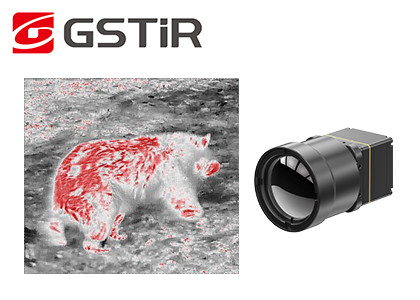

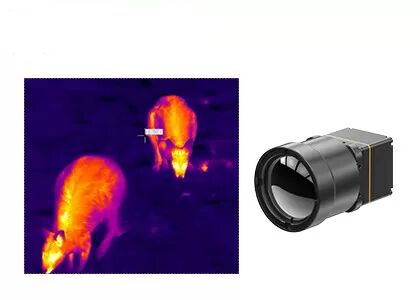

Uncooled 640x512 12µm Thermal Camera Core for Wildlife Observation​


Product Description

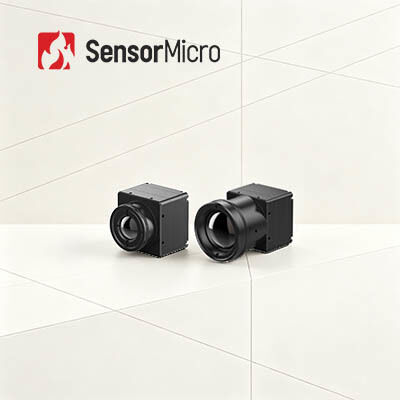

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. The 640x512/12µm uncooled infrared camera core is a high-performance thermal imaging sensor designed for use in advanced infrared imaging systems. It is built using uncooled microbolometer technology, which makes it highly sensitive to thermal radiation in the long-wave infrared (LWIR) spectrum.


The camera core features a 640x512 pixel array with a pixel pitch of 12µm, which allows for high-resolution imaging in a compact form factor. The camera core is designed to operate in a wide range of environments, with a temperature sensitivity of <40mk and a dynamic range of up to 14 bits.


This camera core is ideal for use in a variety of applications, including security and surveillance, industrial inspection, and medical imaging. Its compact size and high-resolution imaging capabilities make it particularly well-suited for use in handheld devices, unmanned aerial vehicles (UAVs), and other mobile platforms.


Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.


Main Features


- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W


Product Specifications


Model TWIN612/R
IR Detector Performance
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD <40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3D/2D/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Dimension (mm) 25.4×25.4×35 (Without Lens)
Weight 25g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optional Lens Fixed Athermal: 13mm


Industrial Applications

The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue

Our Advantages

640x512 12µM Uncooled Thermal Camera Core For Wildlife Observation 0



1. The Differences in Focal Length

The smaller the focal length is, the wider the viewfinder range gets, and the wider the field of view of the captured picture will be. So more scenes can be captured, but the scene is very small in the picture.

The larger the focal length is, the narrower the viewfinder range gets, and the smaller the field of view of the captured picture will be. So fewer scenes can be captured, but the proportion of the scene in the picture is very large.

Infrared camera modules developed by GSTiR team offer wide variety of lens types, such as fixed focus lens, zoom lens, motorized lens etc.


2. How to Choose Suitable Thermal Module for Your Application?


When choosing a suitable thermal imaging module for your products, you need to consider many aspects, such as resolution, frame rate, field of view, range, spectral range etc. Therefore, selecting the appropriate thermal imaging module is the key to ensuring high-quality images and accurate results. Among these aspects, resolution is one of the most critical factors.
