LWIR Thermal Imaging Camera Core With 25Hz/30Hz Frame Rate For ADAS

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TWIN612/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 640x512 Power Consumption 0.8W
Spectral Range 8~14μm Pixel Pitch 12μm
NETD <40mK Frame Rate 25Hz/30Hz
High Light

ADAS Thermal Imaging Camera Core

,

30Hz Thermal Imaging Camera Core

,

0.8W Thermal Camera Core

Leave a Message
Product Description

LWIR Thermal Imaging Module With 640x512 12μM Infrared Detectors For Outdoors



Product Description

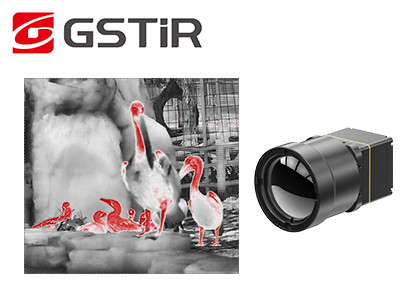

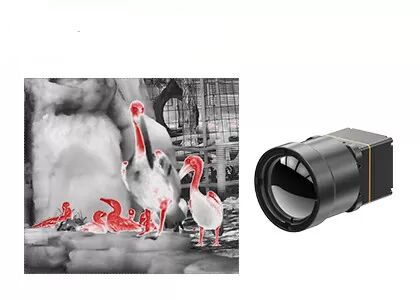

TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD<40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.

With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.



The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.



Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.



Main Features



- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W



Product Specifications



Model TWIN612/R
IR Detector Performance
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD <40mK
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time 6s
Analog Video PAL/NTSC
Digital Video YUV/BT.656/LVDS/USB2.0
Image Display 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot)
Image Algorithm NUC/3D/2D/DRC/EE
Electrical Specifications
Standard External Interface 50pin_HRS
Communication Interface RS232/USB2.0
Supply Voltage 4~5.5V
Typical Power Consumption 0.8W
Temperature Measurement
Operating Temperature Range -10℃~50℃
Temperature Measurement Range -20℃~150℃, 0℃~550℃
Temperature Measurement Accuracy Greater of ±2℃ or ±2%
SDK Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Dimension (mm) 25.4×25.4×35 (Without Lens)
Weight 25g (Without Lens)
Environmental Adaptability
Operating Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Vibration 5.35grms, 3 Axis
Shock Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction
Optics
Optional Lens Fixed Athermal: 13mm



Industrial Applications


The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue


Our Advantages


LWIR Thermal Imaging Camera Core With 25Hz/30Hz Frame Rate For ADAS 0


FAQs



1. NETD



NETD is the Noise Equivalent Temperature Difference, which is the temperature difference between the target and the background when the detector output signal-to-noise ratio is equal to 1. It is an indicator to measure the sensitivity of infrared detector.

The smaller NETD an infrared detector has, the higher thermal sensitivity and better image quality will it has.

The smaller temperature difference between target and background is, the higher thermal sensitivity of the detector is required.



2. Frame Rate



Frame rate is the number of frames per second of a complete image produced by the infrared module. If the target has fast moving speed or rapid changing temperature, thermal module with higher frame rate should be selected, otherwise the measurement accuracy and observation effect will be affected.
