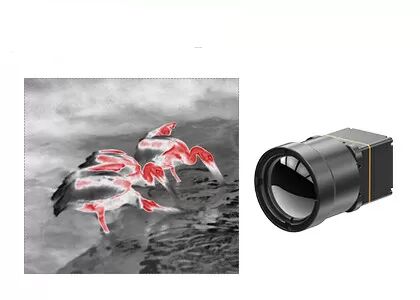

640x512 12μM Infrared Detectors LWIR Camera Core For Medical Inspection
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xResolution | 640x512 | Power Consumption | 0.8W |
---|---|---|---|
Spectral Range | 8~14μm | Pixel Pitch | 12μm |
NETD | <40mK | Frame Rate | 25Hz/30Hz |
Highlight | 12uM Detectors LWIR Camera Core,Medical Inspection LWIR Camera Core,640x512 Ir Detectors Thermal Module |

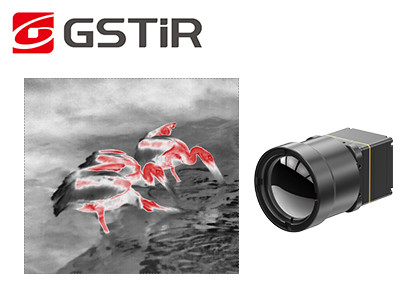

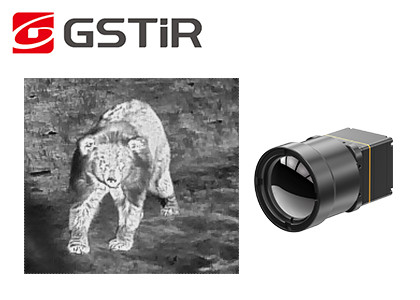

LWIR Thermal Imaging Module With 640x512 12μM Infrared Detectors For Outdoors
TWIN612 thermal module is a new arrival product developed by Global Sensor Technology. It integrates 640×512/12µm ceramic package uncooled infrared detector. With typical NETD<40mk, the TWIN612 thermal module could present clearer, sharper and more detailed image.
With temperature measurement range of -20℃~150℃/0~550℃, accuracy of ±2℃ or ±2% and frame rate up to 30Hz, the thermal module guarantees smooth thermal image and accurate temperature measurement.
The TWIN612 thermal module has the advantages of compact design, light weight structure and power consumption as low as 0.8w. With enhanced image algorithms and temperature measurement function, the TWIN612 thermal module presents more stable images and accurate temperature.
Ceramic packaging process is similar to metal packaging, which is a mature infrared detector packaging technology. Compared with metal packaging, the volume and weight of the packaged detector will be greatly reduced. Thus, the TWIN612 thermal module could be applied to industries that have strict requirements on size, weight and power consumption.
- Mini Size: 25.4mm×25.4mm×35mm
- Light Weight: 25g
- Typical NETD<40mk
- Sharp, Clear Thermal Imaging
- Typical Power Consumption as Low as 0.8W
Model | TWIN612/R |
IR Detector Performance | |
Resolution | 640×512 |
Pixel Size | 12μm |
Spectral Range | 8~14μm |
Typical NETD | <40mK |
Image Processing | |
Frame Rate | 25Hz/30Hz |
Start-up Time | 6s |
Analog Video | PAL/NTSC |
Digital Video | YUV/BT.656/LVDS/USB2.0 |
Image Display | 11 in Total (White Hot/Lava/Ironbow/Aqua/Hot Iron/Medical/Arctic/Rainbow1/Rainbow2/Red Hot/Black Hot) |
Image Algorithm | NUC/3D/2D/DRC/EE |
Electrical Specifications | |
Standard External Interface | 50pin_HRS |
Communication Interface | RS232/USB2.0 |
Supply Voltage | 4~5.5V |
Typical Power Consumption | 0.8W |
Temperature Measurement | |
Operating Temperature Range | -10℃~50℃ |
Temperature Measurement Range | -20℃~150℃, 0℃~550℃ |
Temperature Measurement Accuracy | Greater of ±2℃ or ±2% |
SDK | Windows/Linux; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
Physical Characteristics | |
Dimension (mm) | 25.4×25.4×35 (Without Lens) |
Weight | 25g (Without Lens) |
Environmental Adaptability | |
Operating Temperature | -40℃~+70℃ |
Storage Temperature | -45℃~+85℃ |
Humidity | 5%~95%, non-condensing |
Vibration | 5.35grms, 3 Axis |
Shock | Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction |
Optics | |
Optional Lens | Fixed Athermal: 13mm |
The TWIN612/R thermal imaging module is applied to the field of Thermography, Security Monitoring, UAV Payloads, Robots, Intelligent Hardware, ADAS, Firefighting & Rescue
1. Wide application of infrared thermal imaging module
Infrared thermal modules are widely used in industrial temperature measurement, medical inspection, construction and other fields.
In the industrial field, thermal imaging modules can be used for fault detection and temperature monitoring of mechanical equipment, which can improve production efficiency and reduce production costs.
In the medical field, infrared camera modules can be used to diagnose breast cancer, measure body surface temperature, etc., which can improve the medical level and provide more diagnostic information for medical workers.
In the field of construction, infrared thermal imaging modules can be used to detect energy loss in buildings, improving energy utilization efficiency, and reducing energy consumption.
And more applications scenarios are widely used, such as security monitoring, uav payloads, personal night vision, thermography etc.
