LC130 Thermal Camera Core With 120x90 / 17μM Uncooled Detector For Temperature Measurement
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 120x90 | Pixel Pitch | 17μm |
|---|---|---|---|
| Temperature Range | -20℃~+400℃ | Power Consumption | ≤150mW |
| High Light | LC130 Thermal Camera Core,Uncooled Detector Thermal Camera Core,17μM Uncooled Detector Thermal Camera |
||
Product Description

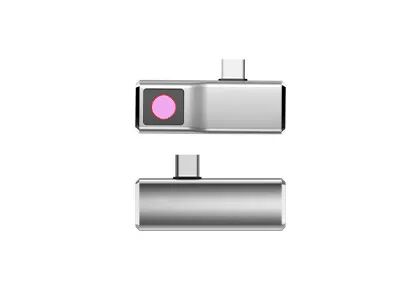

LC130 Thermal Camera Core
LC130 Thermal Camera Core with 120x90 / 17μm Uncooled Detector for Industrial Temperature Measurement
Product Description
Specially designed for industrial temperature measurement, the LC130 infrared module has two optional temperature ranges that are divided into standard and professional version. Its standard version ranges from -20℃~+150℃, while the professional version is from -20℃~+400℃ (-20~150℃/100~400℃ t auto switch)
This tiny infrared module integrates the wafer level packaging 120x90 / 17μm uncooled infrared detector. With SDK and USB interface, the LC130 uncooled thermal module can be easy to be integrated for secondary development.
Main Features
- IR resolution120×90
- IR module for industrial temperature measurement
- Selectable temperature range: standard / professional version
- The color of exterior of the device is Aluminum alloy silver
- With SDK and USB interface, easy for integrated development
Product Specifications
| Version | Standard | Professional |
| IR Resolution | 120×90@17μm | |
| FOV | 50°×38° | |
| Focal Length | 2.3mm #F1.1 | |
| Interface | USB, Type-C Male Connector, USB 2.0 Protocol | |
| Power Consumption | ≤150mW | |
| Temperature Accuracy | ±2℃ or ±2% (Environment Temperature 5℃~30℃ ) | |
| Temperature Range | -20℃~+150℃ | -20℃~+400℃ (-20-150℃ / 100-400℃ Auto Switch) |
| Measuring Distance | 0.5~1.2 Meters | |
| SDK | Android / Linux x86&x64 / Windows x86&x64 | |
| Authentication | CE, FCC, RoHS | |
Industrial Applications
The target user groups are power inspection supporting manufacturer, industrial handset terminal manufacturer, tool maker, electric power AR glasses inspection tool maker.
Exhibitions
FAQs
1. Difference between Thermal Image & Visual Image about Lens
The main difference of the lens is that thermal imaging lens must be made of special materials. The main reason is that infrared heat radiation cannot pass through glass (silicon), so special lenses made of special germanium, chromium and other metal materials are used. This also causes the price of thermal imaging lens to be a bit higher than that of the optical lens, which also increases the price of the whole device.
2. Difference between Thermal Image & Visual Image about Imaging Principle
Their imaging principles are basically the same. Imaging devices image light waves within a certain wavelength range. In nature, the wavelength range of visible light is from 0.39μm to 0.78μm, while the wavelength range of infrared thermal radiation is from 0.75μm to 1000μm. As long as target temperature is higher than absolute zero -273 ℃, there will be infrared radiation.
