Light Weight 120x90 / 17μM Thermal Camera Core For Human Body Temperature Measurement

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number CB360
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Resolution 120x90 Pixel Pitch 17μm
Temperature Range 20℃~50℃ Power Consumption ≤150mW
Leave a Message
Product Description
CB360 Thermal Camera Core


CB360 Light Weight 120x90 / 17μm Thermal Camera Core for Human Body Temperature Measurement


Product Description


CB360 infrared module integrates the wafer level packaging 120x90 / 12μm uncooled infrared detector and is specially designed for body temperature measurement. It is one of the tiny thermal module series that is for human body temperature measument developed by Global Sensor Technology.


The CB360 infrared module has an temperature range from 20℃~50℃ and measuring distance from 0.5~1.2 meters. With SDK and USB interface, the CB360 uncooled thermal module can be easy to be integrated for secondary development.


Global Sensor Technology is a supplier of infrared detectors sensors and OEM thermal camera cores. We have more than 10 years of experience in the infrared thermal imaging industries. We have professional after-sales service team to provide customers with professional reply. For any questions or problems, please contact us at any time, we will be in the first time for you to answer.


Main Features


- IR resolution 120×90

- IR module for body temperature measurement

- Low power consumption, high stability on the temperature measuring

- Aluminum alloy exterior, dark grey

- Compact size, easy to install

- With SDK and USB interface, easy for integrated development


Product Specifications


Version CB360
IR Resolution 120×90@17μm
FOV 50°×38°
Focal Length 2.3mm #F1.1
Interface USB Type-C, USB 2.0 protocol
Power Consumption ≤150mW
Temperature Accuracy ±0.5℃ (Environment Temperature10℃~35℃)
Temperature Range 20℃~50℃ | Accurate Temperature Range: 28℃~42℃
Measuring Distance 0.5~1.2 Meter
SDK Android / Linux x86&x64 / Windows x86&x64
Authentication CE, FCC, RoHS


Industrial Applications


The target customer group is mainly the manufacturers of smart face recognition panel machines (such as clock attendance machines, access control machines, gates, etc.


About GST Infrared

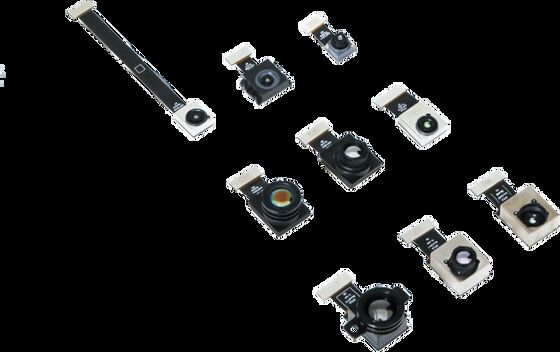

Light Weight 120x90 / 17μM Thermal Camera Core For Human Body Temperature Measurement 0




1. Thermal Image Vs. Visual Image

Visible light is an electromagnetic wave that can be seen by humans. Its wavelength range generally falls between 360-400 nm~760-830nm. This electromagnetic spectrum is also called the visible spectrum, and its frequency range is 830-750THz~395-360THz.

Infrared is an electromagnetic wave with a wavelength between microwave and visible light. Its wavelength is between 760 nanometers (nm) and 1 millimeter (mm). It is an invisible light with a wavelength longer than red light. The frequencies are approximately in the range of 430 THz to 300 GHz.


2. Detector of Thermal Image & Visual Image

For the core detectors of imaging device, visible light devices use the CCD and CMOS detector, while thermal imaging uses cooled and uncooled detector. The main difference is that visible light CCD/CMOS can perceive light waves in the visible light band, and thermal imaging detectors can sense thermal radiation light waves in the infrared band. Infrared thermal imaging detectors are divided into many types according to different manufacturing processes and packaging materials. The more macroscopic feeling is that infrared thermal imaging detectors are more expensive than visible light CCDs.
