OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μM

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TIMO256
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 256x192 Pixel Pitch 12μm
Spectral Range 8~14μm Temperature Range -20℃~+120℃ (Customizable)
NETD ≤45mK Size 15x13x6.83mm
High Light

Thermal Imaging Core 256x192


Small Thermal Imaging Core 12uM


OEM Infrared Thermal Camera Module

Leave a Message
Product Description

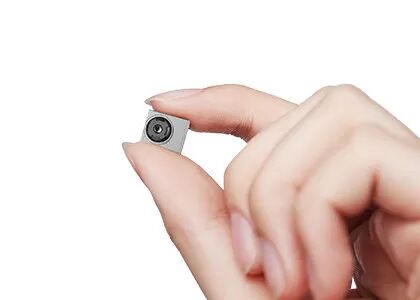

TIMO256 Thermal Camera Core


Light Weight LWIR Uncooled Thermal Imaging Core with 256x192 Resolution, 12μm Pixel Size


Product Description


TIMO256 uncooled IR imaging module, also known as the uncooled thermal module, is one of the TIMO infrared camera module family developed by Global Sensor Technology (GST). It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that covers long wavelength from 8 to 14 microns.


Thanks to the WLP technology, the TIMO256 thermal IR camera module achieves super micro structure, ultra low cost expenditure while offers greater sensitivity and superior image quality at an affordable price, enabling the customer to choose the most suitable type according to their own requirements.


Due to its fully optimized structure, TIMO256 thermal camera core is popular and widely used in infrared thermal imaging applications such as Thermography, Epidemic Prevention, Smart Hardware, AIoT etc.


Main Features


- Detector: WLP uncooled microbolometer
- Resolution: 256x192 / 12 μm
- Miniature Size: 15x13x6.83mm
- NETD: ≤45mK


Product Specifications


Model TIMO-256
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤45mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 53°±1°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
AVDD 3.6V±0.05V
VSK/VDET 5.0±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 70mW
Physical Characteristics
Dimension (mm) 15x13x6.83 (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C


Industrial Applications


The TIMO256 thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.


OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μM 0


Our IR Products


OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μM 1




1. Difference between Thermal Image & Visual Image about Lens

The main difference of the lens is that thermal imaging lens must be made of special materials. The main reason is that infrared heat radiation cannot pass through glass (silicon), so special lenses made of special germanium, chromium and other metal materials are used. This also causes the price of thermal imaging lens to be a bit higher than that of the optical lens, which also increases the price of the whole device.


2. Difference between Thermal Image & Visual Image about Imaging Principle

Their imaging principles are basically the same. Imaging devices image light waves within a certain wavelength range. In nature, the wavelength range of visible light is from 0.39μm to 0.78μm, while the wavelength range of infrared thermal radiation is from 0.75μm to 1000μm. As long as target temperature is higher than absolute zero -273 ℃, there will be infrared radiation.
