High Sensitivity VOx LWIR Thermal Camera Module Uncooled 1280x1024 12μM

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG1212R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 1280x1024/12μm NETD <50mK
Spectral Range 8~14μm Size 20x20x10.4mm
High Light

VOx LWIR Thermal Camera Module

,

VOx Thermal Camera Module 1280x1024

,

Uncooled Camera Module 12uM

Leave a Message
Product Description
PLUG1212 Infrared Camera Module



VOx High Resolution Thermal Camera Module Uncooled LWIR 1280x1024 / 12μM



Product Description



PLUG1212R is one of the PLUG-R series uncooled infrared camera module developed by Global Sensor Technology (GST). It adopts the market preferred focal plane array VOx microbolometer uncooled infrared detector, professional signal processing circuit and image processing platform, completely transforms the target infrared radiation into temperature data. Its temperature measurement is available and temperature range can be customizable raging from -20℃~150 ℃ for industrial temperature measurement.



With the cutting edge Vanadium-Oxide technology, PLUG1212R uncooled LWIR camera core could remain superior environmental adaptability in complex and harsh weather conditions. Also it presents ultra clear image and has characteristics of a low-noise high sensitivity, excellent performance, clear images, edge sharpening and enhanced details in any harsh environment. Its visual information solutions cover day, night, low visibility and all-weather conditions, It has a wide range of applications and is widely used in various industries to meet the needs of personalized observation and temperature measurement.



Main Features



- Pixel pitch: 12μm

- Resolution: 1280x1024

- Spectra Range: 8μm -14μm

- High Sensitivity: NETD<30mK

- Temperature Range: -20℃~150℃, 100℃~550℃

- Temperature Accuracy: ±2℃ or ±2%

- High reliability & Strong Environmental Adaptability.



Product Specifications



Model PLUG1212R
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz
Start-up Time <25s
Analog Video /
Digital Video HDMI/RAW/YUV/BT1120
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 5±0.5V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 56x56x40.2
Weight ≤200g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 19mm/25mm



Industrial Applications



The PLU1212R infrared imaging module is widely used in Power Electricity, Machine Vision, Building Inspection, Metallurgical Petrochemical etc.

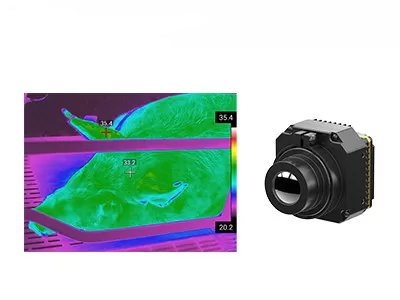

High Sensitivity VOx LWIR Thermal Camera Module Uncooled 1280x1024 12μM 0

Our Core Infrared Detectors

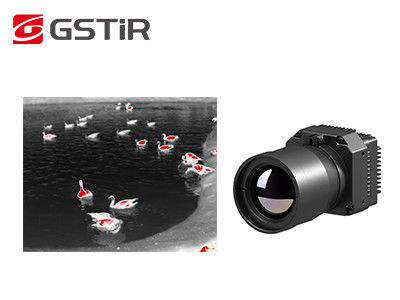

High Sensitivity VOx LWIR Thermal Camera Module Uncooled 1280x1024 12μM 1



FAQs



1. What is infrared thermography?

Thermography is a new and effective technology of non-invasive diagnostic method based on object surface temperature detection. The infrared (IR) radiation emitted from an object is recorded and visualized in the form of a temperature distribution map.



2. What can the infrared thermography be used for?

The infrared thermal image can be used to perform home inspections, determine structural defects, electrical faults, mechanical faults, physiological changes in people & animals and much more.



3. What are the advantages of infrared thermography?

For the non-destructive test, it is simple to test and quick to response without damage, which results in saving costs, increasing work efficiency, reducing manpower and equipment depreciation.

For the medical thermography, it is very efficient to find the hidden problems in human body, 100% safe without radiation and pain, which is an ideal tool for early health screening.
