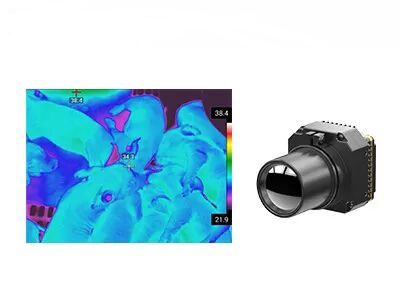

Stable Infrared Thermal Camera Module Core 640x512 17μM For Firefighting Rescue

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG617R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571


If you have any concern, we provide 24-hour online help.

Product Details
Temperature Range -20℃~+550℃ (Customizable) Temperature Accuracy ±2℃ Or ±2%
Resolution 640x512/17μm NETD <30mK
Spectral Range 8~14μm LW Size 44.5x44.5x36.6mm
High Light

Firefighting Camera Module Core


Rescue Camera Module Core 17uM


Stable Thermal Camera Module Core

Leave a Message
Product Description
PLUG617R Uncooled Thermal Core


Infrared Thermal Camera Module Core 640x512 / 17μM For Industrial Thermography


Product Description


PLUG617R uncooled thermal camera module consists of 640x512 / 17μm uncooled fpa infrared detector, full series of optical components, professional signal processing circuit and image processing algorithm.


PLUG617R is a kind of uncooled camera module applied in the field of industrial thermal imaging and temperature measurement. The temperature range is customizable, which can meet the specific requirements of industrial thermography and present a clear thermal image.


As a leading thermal camera module manufacturers, Global Sensor technology is committed to opening a new vision for industrial temperature measurement. After years of technical accumulation and practical experience in the field of infrared temperature measurement, we have provided our customers a full range of machine thermal imaging vision solutions.


Main Features

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability


Product Specifications


Model PLUG617R
IR Detector Performance
Resolution 640x512
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight <90g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm
Motorized Lens: 75mm/100mm/150mm


Industrial Applications


The PLUG617R thermal imaging module is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.


Stable Infrared Thermal Camera Module Core 640x512 17μM For Firefighting Rescue 0


Global Sensor Technology Team


Stable Infrared Thermal Camera Module Core 640x512 17μM For Firefighting Rescue 1




1. What are advantages of thermal imaging technology?

Thermal imaging technology is a kind of passive, non-contact detection and recognizing technology. It has two main functions:

-Thermography: non-contact temperature measurement and fault detection

-Night Vision: easily detect and identify the target in total darkness


2. What is Infrared Camera?

Infrared thermal imaging system uses infrared detectors to sense infrared radiation, and convert it to electrical signals which are then amplified, processed to an image displayed.


3. What is Infrared?

Any object that has a temperature above absolute zero (-273.15 degrees Celsius or 0 Kelvin) emits radiation. The infrared radiation, together with visible light, ultra-violet light, X-ray, gamma ray, cosmic ray and radio waves forms the entire spectrum of electromagnetic. Wavelength of infrared is between 0.78μm to 1000μm, it is a kind of invisible light that its wavelength is longer than red light.
