LWIR Cooled Infrared Detector Integrated Into EO IR Systems 640x512 Resolution
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 640x512 | Pixel Pitch | 15μm |
|---|---|---|---|
| Stable Power Consumption | ＜8W | High Sensitivity | NETD≤25mK |
| Spectral Range | 3.7~4.8μm (MW); 7.7~9.5 (LW) | Size | 142x58.5x71mm |
| High Light | 640x512 Resolution LWIR Infrared Detector,EO IR Cooled Infrared Detector,Integrated LWIR Cooled Detector |
||
Product Description
LWIR Cooled Infrared Detector Integrated Into EO IR Systems 640x512 Resolution
Product Description

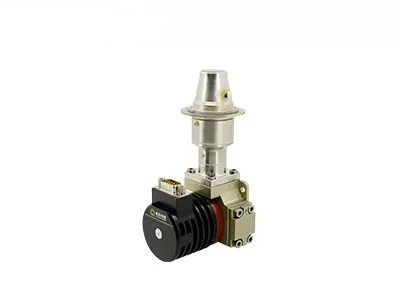

C615S LWIR integrated dewar cooler assembly is one of T2SL cooled infrared detectors developed by Global Sensor Technology (GST). It is a 640x512 / 15µm Type II Superlattice (T2SL), Integrated Detector Cooler Assembly (IDCA), designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.
With 640x512 resolution and reduced pixel pitch to 15µm, the C615S LWIR integrated dewar cooler assembly provides clear image and superior performance. It features in most advanced technology, high quantum efficiency, high frame rate, high sensitivity, low noise, best non-uniformity etc.
As a LWIR detector, it presents high performance under the conditions of sand or dust climate and will not be affected by sunlight flicker or any high temperature flame.
Main Features
- Resolution: 640x512
- Pixel Pitch: 15µm
- High Sensitivity
- Good Imaging Effect
- Low Noise
- Stable Performance
- Excellent Non-uniformity
Product Specifications
| Model | C615S LWIR |
| Material | T2SL |
| Resolution | 640x512 |
| Pixel Pitch | 15um |
| Spectral Range | 7.7μm～9.5μm LW |
| Working Mode | Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | ITR: 12.22Me-/6.67Me- Interlace Binning: 24.44Me-/13.33Me- |
| Dynamic Range | ITR: ≥76dB Interlace Binning: ≥77dB |
| Output Channel | 4; Up to 22.5 Mpixel/s per Output |
| NETD | ≤30mK(F2 ITR) ≤25mK(F2 Interlace Binning) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cooler Type | RS058 |
| Steady Power Consumption | <8W |
| Max Power Consumption | <17W |
| Power Supply | 24V DC |
| Cooling Time | <5min30s |
| Weight | ≤600g |
| Dimension (mm) | 148x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C615S LWIR cooled IR detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Honors & Certificates
FAQs
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
