RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant

I'm Online Chat Now

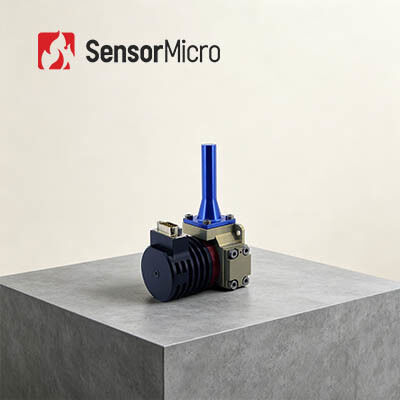

RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant

RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant
RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant

Large Image :  RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: RS058
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Cooling Power: (@77K@20℃)>550mW Stable Power Consumption: <7W (250mW@77K@20℃)
Working Temperature: -45℃~+85℃ Size: 116x58.5x71mm
High Light:

RS058 Integrated Dewar Cooler Assembly

,

7W Integrated Dewar Cooler Assembly

,

Integrated Stirling Cryo Cooler

RS058 Integrate Detector Dewar Cooler Assembly



RS058 Stirling Cryo Cooler, Integrated Dewar Cooler Assembly for Cooled Infrared Detectors



Product Description



RS058 an integral rotary stirling cryocooler which provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of cooled infrared detectors. With the MTTF more than 10000hrs, the RS058 cryo cooler will exceed your expectations that it is integrated into various terminal products and operates in a very long time.



Its motor windings are separated from the working gas to prevent contamination. High wear-resisting coating and clean room assembly are applied to prolong the lifetime and high reliability. For compactness, the electronic drive is built-in. An onboard temperature sensor offers stand-by, remote shutdown and over-temperature protection options. Integrate Detector Dewar Cooler Assembly (IDDCA) is implemented to achieve compactness and efficiency.



Main Features

- MTTF>10000hrs

- Cooling Power: (@77K@20℃)>550mW

- Cooling Time: <5mins (250J@77K@20℃)

- Low Consumption

- Low Noise

- Built-in Drive Electronics



Product Specifications



Model RS058
Type Integral Rotary Stirling Cryocooler
MTTF >10000hrs
Size (mm) 116×58.5×71
Weight <430g
Cooling Power (@77K@20°C) >550mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 18-28VDC/12-16VDC
Max Power Consumption <13W
Steady Power Consumption <7W (250mW@77K@20°C)
Cooling Time <5min (250J@77K@20°C)
Cold Finger Dimension Φ8mm
Electronics Internal
Integration Method IDDCA



Industrial Applications



The RS058 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.



Our Advantages



RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant 0



Customer Feedbacks



RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant 1

Exhibitions



RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant 2



Certificates



RS058 Integrated Dewar Cooler Assembly Stirling Cryo Cooler High Wear Resistant 3



FAQs



1.What is the difference between low light, active IR and thermal imaging?

Low light needs natural light and transforms weak natural light image into enhanced electronic image through image intensifier;

Active IR actively emits infrared light and uses infrared beam reflected by the target. It has very poor concealment;

Thermal imaging doesn’t need any light and is a passive infrared night vision that detects infrared radiation difference between targets and scene or different parts of an object. not be affected by the changes of the surrounding lighting conditions, during night or even in fog, rain and other harsh environments.



2. Can you block thermal imaging?

In most cases, you cannot. But infrared rays can't penetrate walls, and also the glass can block IR. So, if you don’t want to be detected, you can conceal behind glass or walls to block the thermal imaging.
