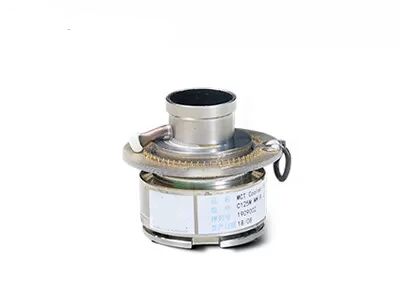

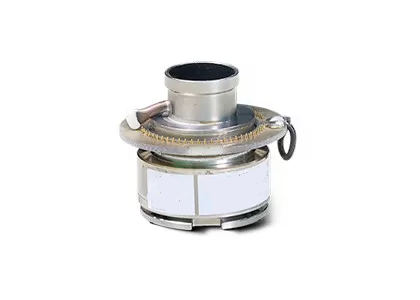

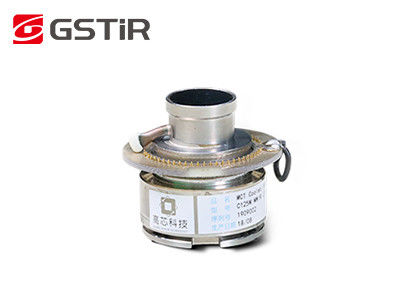

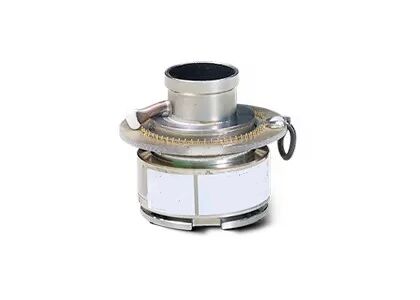

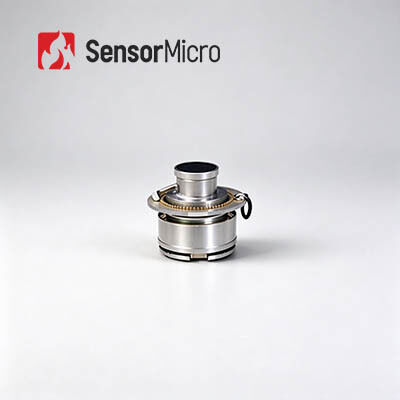

MCT 128x128 25μm Cooled Infrared Detector Integrated Dewar Cooler Assembly MWIR FPA
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | C125M MWIR |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 128x128 | NETD | ＜20mK |
|---|---|---|---|
| Spectral Range | 3.7~4.8μm MW | Pixel Size | 25μm |
| Highlight | Cooled Infrared Detector Mid Wave,FPA Cooled Infrared Detector,128x128 Cooled Infrared Detector |
||
Product Description
Product Overview
The C125M MWIR is a cooled thermal imaging detector that pairs a maintenance-free 128×128 IDDCA with a miniature Joule-Thomson cooler. It fully satisfies the requirements for thermal imaging while delivering a very short cool-down time to ensure operational efficiency.
Main Features
- Resolution: 128×128
- Pixel Pitch: 25µm
- High Sensitivity
- Compact Design
- Lightweight
Product Specifications
| Parameter | Specification |
|---|---|
| Model | C125M MW |
| Material | MCT |
| Resolution | 128×128 |
| Pixel Pitch | 52µm |
| Spectral Range | 3.7µm–4.8µm MW |
| NETD | <20mK |
About SensorMicro
As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of “SensorMicro, Sense More” and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.
Frequently Asked Questions
1. What is infrared thermal imaging?
Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.
2. How does infrared thermal imaging work?
An infrared thermal imaging system is a passive, non-contact detection and identification technology. It focuses the infrared radiation of the scene onto the focal plane array infrared detector through an infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eye.
