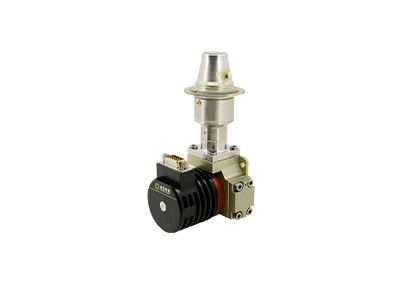

High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector

I'm Online Chat Now

High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector

High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector
High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector

Large Image :  High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C330S LWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 320x256 / 30μm NETD: ≤25mK
Type: Cooled Infrared Detector Size: 142x58.5x71mm
Technology: Infrared Spectral Range: 7.7~9.5 (LW)
High Light:

High Performance Integrated Dewar Cooler Assembly

,

Integrated Dewar Cooler Assembly A320x256

C330S LWIR Cooled Infrared Detector by GST



Good Performance 320x256 / 30µm LWIR Cooled Infrared Detector Integrated Dewar Cooler Assembly



Product Description



C330S LWIR integrated dewar cooler assembly is one of T2SL LWIR cooled infrared detectors developed by Global Sensor Technology (GST). It consists of a 320x256@30µm Type II Superlattice (T2SL) cooled photon detector FPA and Integrated Detector Cooler Assembly (IDCA). It is designed for high performance 7.7~9.5μm Long Wave Infrared (LWIR) wavebands.



Without fear of interference, C330S LWIR integrated dewar cooler assembly is suitable for target detection in complex background, such as ships on the sea in the scene of light reflection on the water surface, aircraft in the background of clouds in the sky, etc.



Main Features


- Resolution: 320x256
- Pixel Pitch: 30µm
- MW/LW Dual-band Imaging
- High Sensitivity
- Excellent Non-uniformity



Product Specifications



Model C330S LWIR
Material T2SL
Resolution 320x256
Pixel Pitch 30μm
Spectral Range 7.7μm~9.5μm LW
Working Mode Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 36Me-/12Me-
Dynamic Range ≥80dB
Output Channel 1 or 4; Up to 6.6 Mpixel/s per Output
NETD ≤25mK (F2)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cooler Type RS058
Steady Power Consumption <8W
Max Power Consumption <17W
Power Supply 24V DC
Cooling Time <5min30s
Weight ≤600g
Dimension (mm) 142x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C330S LWIR is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector 0


Praises from Customers

High Performance Integrated Dewar Cooler Assembly 320x256 30μm Cooled Infrared Detector 1


FAQs



1.What is infrared thermal imaging?

Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. According to the radiation difference between the object and the background environment and the radiation difference of each part of the object itself, the infrared thermal image can show the radiation fluctuation of each part of the scene, thus showing the characteristics of the scene.



2. What is the advantage of infrared thermal imaging?

---See through total darkness;

---Identification under camouflage;

---Long range detection;

---Heat distribution detection;

---Non-contact temperature measurement;

---Occupation awareness



3. What is the applications of infrared thermal imaging?

Temperature measurement and all-weather imaging are two basic functions of infrared thermal imaging technology. Products developed based on these two technologies are widely used in electric power, security & monitoring, industrial manufacturing, scientific research, medical treatment and other traditional fields.
