1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity

I'm Online Chat Now

1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity

1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity
1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity

Large Image :  1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: ≤20mK (F2/F4)
Spectral Range: 3.7~4.8μm MW Size: 149x58.5x71mm
High Light:

1280x1024 FPA Detector

,

Cooled FPA Detector

,

Megapixels FPA Detector

About C1212M Cooled Infrared Detector

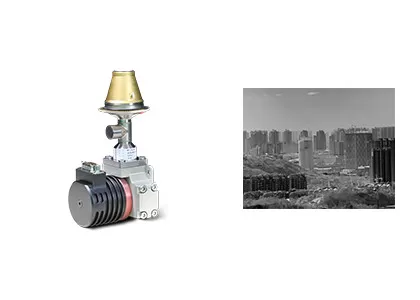

1280x1024 / 12μm Megapixels Cooled FPA Detector with Integrated Dewar Cooler Assembly



Product Description



The C1212M is an integrated dewar cooler assembly at the format of 1280x1024@12μm. It is China’s first 12μm HgCdTe (MCT) cooled infrared detector with resolution up to 1,310,720 effective imaging pixels. Compared with the traditional 15μm products, the reduced 12µm pixel size offer better spatial resolution and match shorter optical lens focus to achieve the same range mission. As a result, the infrared cameras or systems designed based on C1212M is more compact in size and affordable in price, but never compromise in performance.



 Main Features


- Resolution: 1280x1024
- Pixel Pitch: 12μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity 0



Our Advantages


1280x1024 12μm Megapixels Cooled FPA Detector High Sensitivity 1


FAQs



1.What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.



2.What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.



3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
