Mid Wave Type II Superlattice 640x512 15μm Cooled Infrared Detector for Integrated Dewar Cooler Assembly

Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number C615H
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 640x512 / 15μm NETD 20mK (F2/F4)
Spectral Range 3.7±0.2μm~4.8±0.2μm Max. Frame Rate 100Hz
Response Non-uniformity ≤8% Effective Pixel Rate ≥99.76%
Highlight

Cooled Infrared Detectors 30um

,

Superlattice Infrared Detectors 320x256

,

RS058 Lwir Cooled Infrared Detectors

Leave a Message
Product Description
Product Description

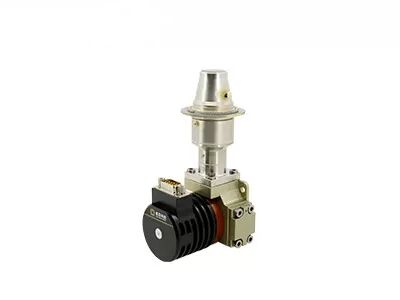

Utilizing Type‑II Superlattice technology and a linear cryocooler design, the C615H HOT cooled infrared detector provides 640×512 resolution at 15 μm pixel size. Operating the focal‑plane array at 150 K, it maintains premium performance with excellent SWaP: 235 g weight, 3 W power draw, and 2.5‑minute fast cool‑down. The compact dewar and cryocooler support flexible system integration, while MTTF ≥25,000 hours ensures long‑term reliable operation for low‑maintenance thermal imaging applications.

Main Features
SWaP-Optimized Design
  • Dewar size: φ33 × 37.5 × 70 mm; Cryocooler: φ26 × 55.8 mm, allowing flexible integration
  • Weight reduced to 235 g; stable power consumption lowered to 3 W
Rapid Cooling, Fast Start-Up
  • Cooling time as short as 2.5 minutes
Extended Lifetime, Efficient Operation
  • MTTF ≥ 25,000 hours
Product Specifications
Parameter Specification
Model C615H
Sensitive Material T2SL
Resolution 640×512
Pixel Size 15 μm
Spectral Response 3.7±0.2 μm ~ 4.8±0.2 μm
Typical NETD 20 mK (F2/F4)
Max. Frame Rate 100 Hz
Effective Pixel Rate ≥99.76%
Response Non-uniformity ≤8%
Operating Temperature -45℃ ~ +71℃
Cryocooler LS711H | RS028
Cooling Time (23℃) ≤3 min | ≤2.5 min
Max. Power Consumption (71℃) ≤12 W | ≤12 W
Steady Power Consumption (23℃) ≤3 W | ≤3.5 W
Size (mm) Cryocooler: φ26×55.8 | 86×43×57
Dewar: 33×37.5×70
Weight (g) ≤235 | ≤250
Industrial Applications

The C615H MWIR cryogenically cooled infrared detector is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research, and more.
