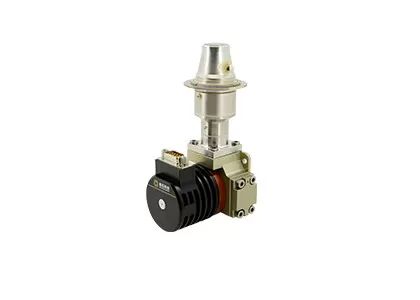

T2SL Integrated Dewar Cooler Assembly Dual Band Cooled IR Detector
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | C330S MW/LW |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Resolution | 320x256 | Pixel Pitch | 30μm |
|---|---|---|---|
| Stable Power Consumption | ＜9W | NETD | ≤20mK (MW); ≤25mK (LW) |
| Spectral Range | 3.7~4.8μm (MW); 7.7~9.5μm (LW) | Size | 142x58.5x71mm |
| Highlight | T2SL Integrated Dewar Cooler Assembly,T2SL Cooled IR Detector,RoHS Integrated Dewar Cooler Assembly |
||
Product Description
320x256 / 30µm MWIR/LWIR Dual Band Cooled Infrared Detector
Product Description
The C330S dual band cooled infrared detector consists a single 320x256 / 30µm FPA to receive the mid wave and long wave infrared radiation and dewar assembly to provide the vacuum ultra-low temp working environment for the FPA and a cryo cooler to cool down the temperature inside the dewar assembly.
Each of the 320x256 pixels in the array can be switched between MWIR and LWIR sensitivity mode by changing the bias voltage on the device, ensuring spatial coherence between the two bands. Images / videos from both bands can be captured and output within a single frame period, optimizing the temporal coherence between bands. The frame frequency of both bands can be up to 100Hz for monitoring the high speed moving targets.
Main Features
- Resolution: 320x256
- Pixel Pitch: 30µm
- MW/LW Dual-band Imaging
- High Sensitivity
- Excellent Non-uniformity
Product Specifications
| Model | C330S MWIR/LWIR |
| Material | T2SL |
| Resolution | 320x256 |
| Pixel Pitch | 30μm |
| Spectral Range | MW: 3.7μm～4.8μm LW: 7.7μm～9.5μm |
| Working Mode | Snapshot; ITR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | MW: 8.9Me-/3Me- LW: 21Me- |
| Dynamic Range | MW:≥76dB LW:≥80dB |
| Number of Output | 2 or 8; Up to 12 Mpixel/s per Output |
| NETD | MW≤20mK LW≤25mK |
| Effective Pixel Rate | ≥99.0% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058 |
| Steady Power Consumption | <9W |
| Max Power Consumption | <18W |
| Power Supply | 24V DC |
| Cooling Time | <8min |
| Weight | ≤600g |
| Dimension (mm) | 142x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C330S MW/LW infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Customized Service
Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
