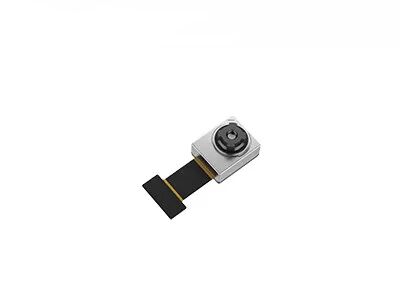

OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number TIMO256
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 256x192 Pixel Pitch 12μm
Spectral Range 8~14μm Temperature Range -20℃~+120℃ (Customizable)
NETD ≤45mK Size 15x13x6.83mm
High Light

Uncooled LWIR Thermal Imaging Core


OEM LWIR Thermal Imaging Core


12um Small Thermal Camera Core

Leave a Message
Product Description

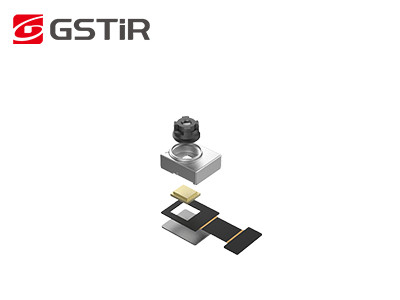

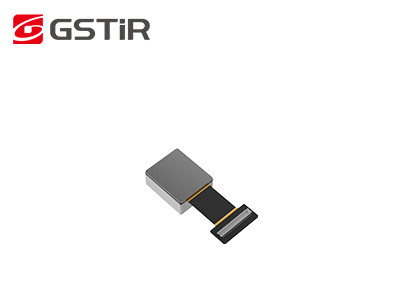

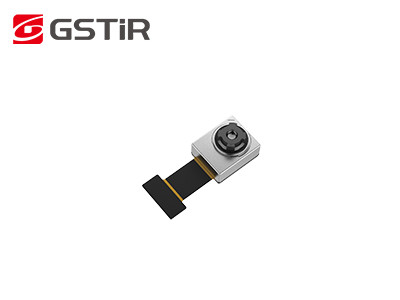

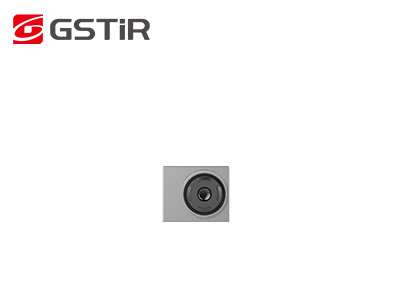

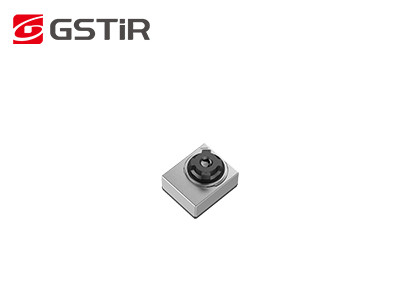

TIMO256 Thermal Camera Core


Light Weight LWIR Uncooled Thermal Imaging Core with 256x192 Resolution, 12μm Pixel Size


Product Description


TIMO256 uncooled IR imaging module, also known as the uncooled thermal module, is one of the TIMO infrared camera module family developed by Global Sensor Technology (GST). It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that covers long wavelength from 8 to 14 microns.


Thanks to the WLP technology, the TIMO256 thermal IR camera module achieves super micro structure, ultra low cost expenditure while offers greater sensitivity and superior image quality at an affordable price, enabling the customer to choose the most suitable type according to their own requirements.


Due to its fully optimized structure, TIMO256 thermal camera core is popular and widely used in infrared thermal imaging applications such as Thermography, Epidemic Prevention, Smart Hardware, AIoT etc.


Main Features


- Detector: WLP uncooled microbolometer
- Resolution: 256x192 / 12 μm
- Miniature Size: 15x13x6.83mm
- NETD: ≤45mK


Product Specifications


Model TIMO-256
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD ≤45mK
Lens Type WLO
Focus Mode Fixed Zoom
HFOV 53°±1°
Depth of Field 10cm to Infinity
Frame Rate 1~30Hz (Customizable)
Temperature Measurement
Temperature Range -20°C ~ +120°C (Customizable)
Temperature Accuracy Customizable (Meet the Requirements of Body or Industrial Thermography)
AVDD 3.6V±0.05V
VSK/VDET 5.0±0.05V
DVDD 1.8V±0.05V
Interface Digital Interface
Power Consumption 70mW
Physical Characteristics
Dimension (mm) 15x13x6.83 (The Specifications Shall Prevail)
Operation Temperature -20°C ~ +60°C
Storage Temperature -40°C ~ +85°C


Industrial Applications


The TIMO256 thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.


OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm 0


Our IR Products


OEM Small Size Uncooled LWIR Thermal Imaging Core 256x192 12μm 1




1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".

2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
