Miniature VOx FPA Thermal Imaging Camera Core 120x90 / 17μm
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Spectral Range | 8~14μm | NETD | ≤60mK |
|---|---|---|---|
| Resolution | 120x90 | Pixel Pitch | 17μm |
| Temperature Range | -20℃~+120℃ (Customizable) | Size | 8.5x8.5x9.16mm |
| High Light | VOx FPA Thermal Imaging Camera,Miniature Thermal Imaging Camera Core,Thermal Camera Core 120x90 |
||
Product Description
TIMO120 Thermal Camera Core
Miniature VOx FPA 120x90 / 17μm Thermal Imaging Camera Core Integrated in Infrared Cameras
Product Description

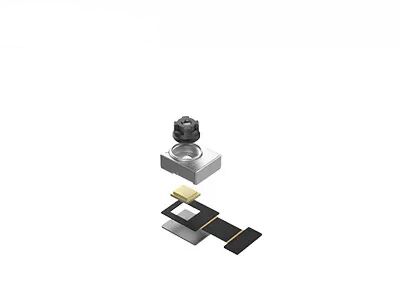

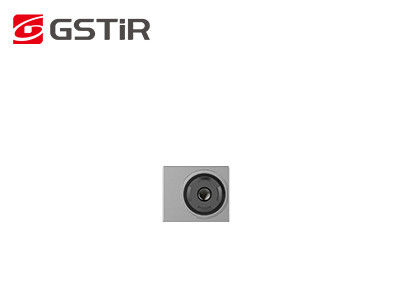

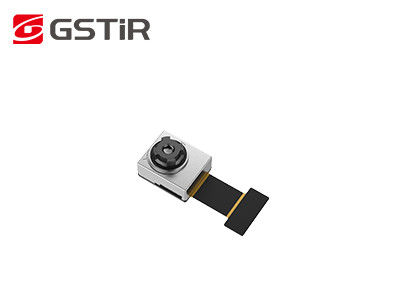

TIMO120 miniature infrared module integrates wafer-level optics, 120x90 / 17μm wafer level package (WLP) detector and basic image processing circuit to quickly obtain thermal images of the target area and heat distribution.
TIMO120 thermal imaging core is oriented for optimized size, weight, power, cost (SWaP-C) infrared imaging applications. Its super miniature structure and ultralow power consumption are convenient to be integrated into various smart devices, thermal imagers or mobile terminals with strict requirements on cost, size and weight.
Main Features
- Minimum WLP infrared module, dimension at 8.5x8.5x9.16mm
- DVP Interface, compatible with various embedded platforms
- Visible camera module equivalent, directly integration
- Complete SDK development kit
- Low power design for extend longer operating time
- Low cost for many kinds of intelligent applications
Product Specifications
| Model | TIMO-120 |
| IR Detector Performance | |
| Resolution | 120x90 |
| Pixel Pitch | 17μm |
| Spectral Range | 8~14μm |
| NETD | ≤60mK |
| Lens Type | WLO |
| Focus Mode | Fixed Zoom |
| HFOV | 90°/50° |
| Depth of Field | 10cm to Infinity |
| Frame Rate | 1~30Hz (Customizable) |
| Temperature Measurement | |
| Temperature Range | -20°C ~ +120°C (Customizable) |
| Temperature Accuracy | Customizable (Meet the Requirements of Body or Industrial Thermography) |
| Interface/Control | |
| AVDD | 3.6V±0.05V |
| VSK/VDET | 4.7±0.05V |
| DVDD | 1.8V±0.05V |
| Interface | Digital Interface |
| Power Consumption | 45mW (Typical Mode); 9mW (Low Power Mode) |
| Physical Characteristics | |
| Dimension (mm) | 12x10x5.48 (HFOV=90°); 8.5x8.5x9.16 (HFOV=50°) (The Specifications Shall Prevail) |
| Operation Temperature | -20°C ~ +60°C |
| Storage Temperature | -40°C ~ +85°C |
Industrial Applications
The TIMO120 infrared thermal camera core is widely used in many areas, such as Thermography, Intelligent Hardware, Smart Building, Smart Home, AIoT etc.
Global Sensor Technology Team
FAQs
1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
