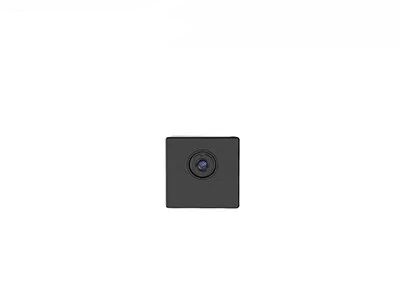

Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iLC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 256x192 Power Consumption 700mW
Spectral Range 8~14μm Pixel Pitch 12μm
NETD ≤65mK Frame Rate 25Hz/30Hz
High Light

LWIR Thermal Camera 12uM

,

3.2mm Lens LWIR Thermal Camera

,

256x192 LWIR Thermal Camera Core

Leave a Message
Product Description
iLC212 Thermal Security Camera Module


Uncooled Micro LWIR 256x192 12μm Thermal Camera Core with 3.2mm Lens


Product Description


iLC212 uncooled IR imaging module integrates the 256x192 / 12μm focal plane array wafer level package (WLP) infrared detector and can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.

Oriented for fully optimized SWaP-C, the iLC212 thermal camera module is specially designed for those customers who has strict requirements about size, weight and cost in the area of security and surveillance. Due to its miniature size, light weight and very low price, the iLC212 thermal core greatly meets the customers' low price demands, shorten their developement time and save costs for them.

Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.


Main Features


- Fully optimized SWaP-C application
- Suitable for various security thermal cameras
- A wide range of thermal imaging applications
- Low Power Consumption


Product Specifications



ModeliLC212
IR Detector Performance
MaterialUncooled Vanadium Oxide
Resolution256×192
Pixel Size12μm
Spectral Response8μm ~14μm
NETD≤65mK@F1.0@25℃@50Hz
Image Processing
Digital VideoRAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate25Hz/30Hz
Image DisplayBlack-hot/white-hot/Pseudo-color
Image AlgorithmNonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time≤3s
Temperature Measurement
Operating Temperature Range-10℃~+50℃
Temperature Measurement Range-20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature MeasurementSupport Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDKWindows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical Interface
External Interface30pin_HRS Connector
Power Input
Digital Video
RS232-TTL/USB2.0
GPIO etc.
CommunicationRS232-TTL/USB2.0
Expansion ComponentVPC Board
PC Software
ICC SoftwareModule Control and Video Display
Power System
Power SupplyDC 3.3V±0.1V
Power DissipationSteady State: 0.70W/3.3V @23±3℃
Physical Property
ConnectorsExternal Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size21mm×21mm×12.8mm (including 3.2mm lens)
Weight8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature-40℃~+70℃
Storage Temperature-45℃~+85℃
Humidity5%~95%, non-condensing
Impact & Vibration ResistanceImpact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
CertificationROHS2.0/REACH
Lens
Optional Lens3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR



Industrial Applications


The iLC212 thermal imaging module is applied to the field of Security Monitoring, Thermography, Wearable Device, Vehicle Electronics, Smart Home, Living Creatures Detection etc.
Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens 0


Exhibitions


Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens 1


FAQs


1. What is infrared radiation?
When talking about infrared thermal imaging, the first thing to think about is infrared radiation (IR). The wavelength of infrared radiation energy starts at about 700nm and extends to about 1mm. All objects emit a certain amount of heat in the form of infrared radiation, which is invisible to us, because in the entire electromagnetic spectrum, the naked eye can only see "visible light".
2. How does infrared thermal imager work?
The core component of the infrared equipment is the infrared thermal detector, which can sensitively detect the tiny temperature difference of the surrounding objects. Then, it collects this radiation information from the object and outputs the temperature information for imaging, which is based on the temperature difference information. The hotter the object, the more infrared radiation it produces. If the intensity is too high, you can feel it like heat.
