High Sensitivity LWIR Thermal Camera Core Uncooled NETD 30mk 8~14μm

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number PLUG417R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 400x300 / 17μm Frame Rate 25Hz/30Hz/50Hz/60Hz
NETD <30mK Spectral Range 8~14μm
Size 44.5x44.5x33.6mm Weight ≤77g
High Light

NETD 30mk Thermal Camera Core

,

14um Uncooled Thermal Camera Core

Leave a Message
Product Description

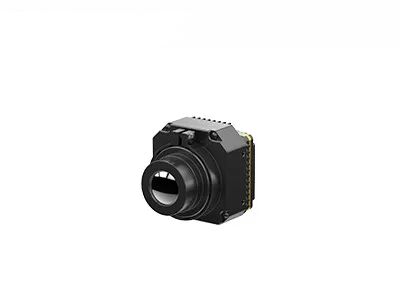

PLUG417R Uncooled Thermal Module



LWIR 400x300 / 17μm Uncooled Thermal Imaging Camera Core with Industrial Thermography



Product Description



PLUG417R thermal camera core uses the 400x300 / 17μm uncooled LWIR infrared detctor with an optional temperature measurement function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement. This infrared thermal module can not only measures the value of temperature around you but also display the thermal imaging figure. So it must be your best choice to monitor the temperature change.



This small infrared camera module can be widely used in infrared thermal imaging applications such as Thermography, Electricity Power Inspection, Building Inspection etc. It is beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.



Main Features


- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration
- Clear Image Quality & Details
- Customizable Temperature Range
- Strong Environmental Adaptability



Product Specifications



Model PLUG417R
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <15s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±2°C or ±2% (Take the Maximum Value)
SDK ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 44.5x44.5x36.6
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optics
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm



Industrial Applications



The PLUG417R thermal camera core is widely used in Electric Power Inspection, Machine Vision, Building HVAC Security & Monitoring, Outdoors, Firefighting & Rescue, Law Enforcement & Rescue, ADAS, UAV Payloads etc.



High Sensitivity LWIR Thermal Camera Core Uncooled NETD 30mk 8~14μm 0



Praises from Customers



High Sensitivity LWIR Thermal Camera Core Uncooled NETD 30mk 8~14μm 1



FAQs



1. About Thermal Detector


The working principle of thermal detectors is to take advantages of the thermal effect to heat the detection element and cause heat transformation of some physical properties so that the IR radiation energy can be detected.

Thermal detector works at room temperature. During its operation, there are temperature changes, which may have slow response and a relatively low sensitivity compared with photon detectors.

There are mainly 4 types of the infrared thermal detector: Thermocouple/Thermopile, Pyroelectric Detector, Thermistor/Bolometer, Microbolometer



2. How does Infrared Thermal Imaging Work?


Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
