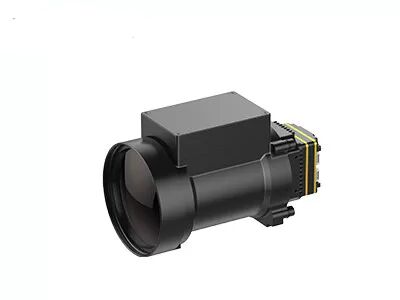

8~14μm LW Uncooled Thermal Imaging Camera Module For Firefighting
Contact me for free samples and coupons.
Wechat: 0086 18588475571
If you have any concern, we provide 24-hour online help.x
|Resolution||640x512 / 17μm||Camera Lens||Multiple Available|
|Spectral Range||8~14μm LW||Size||44.5x44.5x33.6mm|
Firefighting Thermal Imaging Camera Module,
14um LW Uncooled Camera Module
640x512 / 17μm Uncooled Thermal Imaging Camera Module for Outdoors, Animal Observation
PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).
Consisted of 640x512 / 17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG617 LWIR camera module provides clear image and superior performance.
PLUG series uncooled infrared modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Typical Power Consumption||<1.2W|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm
The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.
1. Working Principle of Infrared Focal Plane Array
An array of photosensitive elements is arranged on the focal plane array detector. Infrared rays emitted from infinity are imaged on these photosensitive elements of the focal plane array through the optical system. The detector converts the light signal into an electrical signal and performs integral amplification, sampling, output buffer and multiplexing system, and is finally sent to the monitoring system to form an image.
