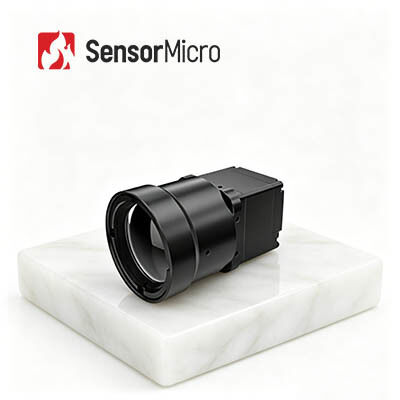

LWIR Uncooled Thermal Camera Core with 640x512 Resolution and 12μm Pixel Size for Firefighting and Rescue
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | iSE612 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | Resolution | 640x512 / 12μm |
|---|---|---|---|
| Camera Lens | Multiple Available | NETD | ≤20mK |
| Spectral Range | 8~14μm LW | Digital Frame Rate | 50Hz |
| Highlight | Rescue LWIR Thermal Camera Core,LWIR Uncooled Thermal Camera Core |
||
Product Description

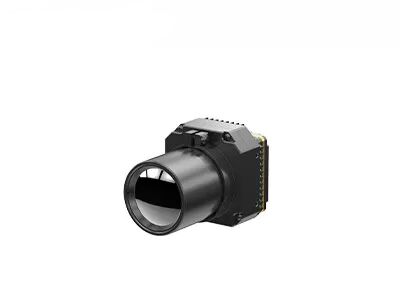

LWIR Uncooled Thermal Camera Core 640x512 12μm for Firefighting and Rescue
Product Overview
The iSE612 infrared camera core is built on our independently developed ApexCore 640×512/12μm ceramic-packaging thermal detector. Featuring shutterless design, it eliminates shutter calibration and prevents image stuttering and noise. Equipped with super-resolution, picture-in-picture, customizable OSD and electronic zoom functions, this SWaP-optimized core supports multiple video interfaces and lenses. Compact and lightweight, it delivers outstanding imaging performance, ideal for industrial vision, firefighting, security surveillance, machine vision and consumer electronics.
Main Features
- Smooth, Stable, and High Cost-effective - No shutter calibration required during operation, eliminating image stuttering common in traditional shutter-based systems. Adopts high cost-effective ApexCore ceramic-packaging detector with NETD≤20mK
- Compact and Lightweight, Flexible for Integration - Dimensions as small as 25.4×25.4×22.7mm, bare core weight ≤26±1.5g. Space-saving structural design allows flexible system layout and integration
- Rich Features for Seamless Integration - Supports super-resolution algorithms, picture-in-picture, customizable OSD, sleep mode, one-click calibration, and compatibility with various Micro OLED displays. Compatible with multiple optical lenses and extension components for easy secondary development and system customization
Product Specifications
| Model | iSE612 | |
| IR Detectors Indicators | ||
| Sensitive Material | VOx | |
| Resolution | 640×512 | |
| Pixel Size | 12μm | |
| Spectral Response | 8μm ~ 14μm | |
| Typical NETD | ≤20mK | |
| Image Processing | ||
| Digital Frame Rate | 50Hz | |
| Start-up Time | 6s | |
| Digital Video | YUV420/YUV422/RGB888/RAW | |
| Image Algorithm | NUC/DRC/DNS/DDE/SFFC | |
| Shutterless | Supported | |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) | |
| Image Direction | Horizontal/Vertical/Diagonal | |
| Digital Zoom | 1x/2x/4x/8x | |
| Electrical | ||
| Standard External Interface | 50pin: BP040SB-50-0114-B-R0 | |
| Communication Interface | TTL-232/USB2.0 | |
| Digital Video Interface | DVP8/BT.656/DVP16/BT.1120/USB2.0/MIPI-DSI-4LANE | |
| Extension Components | USB2.0/SDI/HDMI/GIGE/Cameralink/VPC/MIPI-CSI-2LANE | |
| Electrical Interface | ||
| Supply Voltage | 2.7V~5.3V | |
| Typical Power Consumption | 0.8W@50Hz@23±3℃ | |
| Mechanical/Lens | ||
| Bare Core Size(mm) | 25.4×25.4×22.7mm | φ36×24.3mm |
| Bare Core Weight(g) | 26±1.5 | 28±1.5 |
| Optical Lens | Fixed Focus Athermal: 4.8mm/9.1mm/13mm/19mm | Fixed Focus Athermal: 25mm/35mm/50mm/70mm/100mm Manual Focus: 25mm/35mm/50mm Motorized Lens: 75mm/100mm/150mm Continuous Zoom: 15~75mm/20~100mm/28~90mm/30~150mm/30~180mm/25~225mm |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times | 1500g@0.4ms |
| Vibration | 5.35g, Random Vibration, 3-axis | |
| Shutter Components | Optional | |
| Environmental Adaptability | ||
| Operating Temperature | -40℃~+70℃ | |
| Storage Temperature | -45℃~+85℃ | |
| Humidity | 5%~95%, non-condensing | |
| Certification | ROHS2.0/REACH | |
Industrial Applications
The iSE612 thermal imaging module is widely used in Industrial Vision, Firefighting and Rescue, Security Surveillance, Outdoor Observation, Machine Vision, Consumer Electronics etc.
Company Profile
SensorMicro is the world leading infrared detector manufacturer and service provider. It is willing to provide customers all over the world with high performance uncooled and cooled thermal imaging detectors and share its professional application experience.
SensorMicro delivers advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems--empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive and consumer infrared products. The volume production capability of SensorMicro enables it to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
1. Spatial Resolution
As an indicator of the clarity of thermal image, it shows the ability to resolve the spatial shape of the target and is usually expressed in mrad (milliradian).
Spatial resolution is a measure of the smallest object that can be resolved by the sensor, or the ground area imaged for the instantaneous field of view (IFOV) of the sensor. The IFOV is affected by the size of the individual detecting element, d and the focal length of the lens, f.
That is iFOV = d / f
For a given distance, the smaller spatial resolution value is, the smaller target and richer details can be seen. For a given target, the smaller spatial resolution value is, the longer range it will be detected.
