|Resolution||640x512 / 17μm||Camera Lens||Multiple Available|
|Spectral Range||8~14μm LW||Size||44.5x44.5x33.6mm|
Infrared Camera Module 640x512,
UAV Payloads Infrared Camera Module

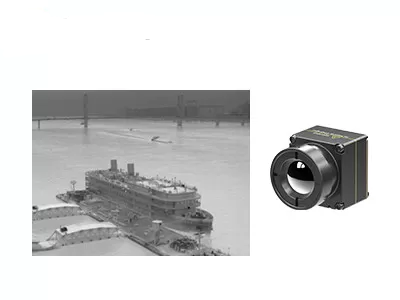

640x512 / 17μm Uncooled Thermal Imaging Camera Module for Outdoors, Animal Observation
PLUG617 is one of the PLUG series uncooled thermal camera sensor module developed by Global Sensor Technology (GST).
Consisted of 640x512 / 17µm uncooled thermal camera sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG617 LWIR camera module provides clear image and superior performance.
PLUG series uncooled infrared modules are specially developed for various personalized observation requirements, which provide various standard industrial interfaces and infrared lens options to meet specific integration requirements. Some professional thermal imaging solutions have been applied to many applications.
- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability
|IR Detector Performance|
|Digital Zoom||1~8X Continual Zoom, Step Size 1/8|
|Image Display||Black Hot/White Hot/Pseudo Color|
|Image Direction||Horizontally/Vertically/Diagonally Flip|
|Standard External Interface||50pin_HRS Interface|
|Communication Mode||RS232-TTL, 115200bps|
|Typical Power Consumption||<1.2W|
|Operation Temperature||-40°C ~ +70°C|
|Storage Temperature||-45°C ~ +85°C|
|Vibration||Random Vibration 5.35grms, 3 Axis|
|Shock||Half-sine Wave, 40g/11ms, 3 Axis 6 Direction|
|Optional Lens||Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm
The PLUG617 thermal imager module is widely used in Security and Monitoring, Outdoors, Law Enforcement Rescue, Firefighting and Rescue, ADAS, UAV Payloads etc.
1. What is DRI Range?
It is a means of measuring the distance at which an infrared detector can produce an image of specific target and can be divided into detection range, recognition range, identification range.
D (Detection): ability to distinguish an object from the background
R (Recognition): ability to classify the object class (animal, human, vehicle, boat …)
I (Identification): ability to describe the object in details (a man with a hat, a deer, a Jeep …)
According to Johnson's criteria, when the probability of target detail visible at the DRI distance is 50%, the minimum number line pairs of the target is 1:3:6 (or 1:4:8), and the corresponding minimum number of pixels is 2:6:12 (or 2:8:16).
Assuming that the target diameter is H, the focal length is f, the pixel size is d, and the number of line pairs is n, then the view distance L=H×f/(2n×d)
