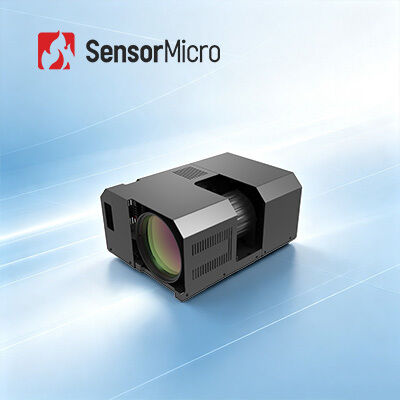

Fast Integration MCT MWIR Cooled Thermal Module with 1280×1024 Resolution 12μm Pixel Size and 50Hz Frame Rate

  • Fast Integration MCT MWIR Cooled Thermal Module with 1280×1024 Resolution 12μm Pixel Size and 50Hz Frame Rate
  • Fast Integration MCT MWIR Cooled Thermal Module with 1280×1024 Resolution 12μm Pixel Size and 50Hz Frame Rate
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280×1024/12μm IR Detector NETD (23℃) 18mK (F2/F4)
Spectral Range 3.7~4.8μm MW Frame Rate 50Hz
Size 149×58.5×80mm Weight ≤680g
Highlight

MCT MWIR Cooled Thermal Module

,

MWIR Cooled Thermal Module 100Hz
Leave a Message
Product Description
Fast Integration MCT MWIR 1280×1024/12μm Cooled Thermal Module 50Hz
Product Overview

Designed for high-performance thermal imaging applications, the GAVIN GC1212MA HD MWIR cooled infrared camera core incorporates a proprietary 1280×1024/12μm cooled MWIR detector. It achieves four times the pixel resolution of ordinary 640×512 detectors within equivalent imaging space, bringing a wider field of view and revealing subtle target details. Multiple advanced image processing algorithms ensure direct high-definition image output, making it a dependable solution for all-weather target detection in fluctuating visibility and rugged working environments.

Main Features
Megapixel Resolution, Exceptional Image Quality
  • Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging
  • Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity
High Reliability, Superior Sensitivity
  • Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications
  • Outstanding thermal sensitivity with NETD as low as 18mK
Easy Integration, Flexible Configuration
  • Supports CameraLink interface with RAW/YUV image data output
  • Multiple continuous zoom optical configurations available for different needs
Product Specifications
Model GAVIN GC1212MA
Indicators Resolution: 1280×1024
Pixel Size: 12μm
Cryocooler: RS058
Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃): 18mK(F2/F4)
Image Processing Frame Rate: 50Hz
Dimming Mode: Linear/Histogram/Mixed
Digital Zoom: 1× to 8× continuous digital zoom
Image Direction: Horizontally/Vertically/Diagonally Flip
Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE
Electrical Standard External Interface: J30JZ 25-pin HDMI Dedicated Output Interface
Analog Video: PAL/NTSC
Digital Video: Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync: Standard: LV-TTL
Option: RS422/LVDS
Communication: Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply: 24V±4V
Steady Power Consumption(23℃): ≤11W
Cooling Time(23℃): ≤8min
Size & Weight Size(mm): 149×58.5×80
Weight(g): ≤680
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications
  • NDT (Non-Destructive Testing)
  • Environmental Monitoring
  • Long-Range Surveillance
  • Scientific Research
Standardized Service
  • Complete Documentation: Product manuals, setup guides, and selection references
  • Development & Testing Assistance: Sample Integrated Testing, performance evaluation, and parameter verification
  • Advanced Developer Toolkit: SDKs, APIs, algorithms, and debugging tools for deep integration
  • Remote Technical Support: 24/7 support with quick response and timely resolution for critical issues
  • Warranty: Original parts and strict process adherence to restore optimal performance
Frequently Asked Questions
Application of LWIR, MWIR/LWIR Dual-color Cooled Infrared Detector

In infrared thermal imaging technology, long-wave thermal detectors have strong penetration through dusty atmospheres, are not disturbed by sun glint effects and light reflections. Outstanding image quality can be obtained in various complex environments, such as vehicle drives in the dusty atmosphere, ship sails on the water with reflective light and aircraft flying through clouds. The dual-color cooled infrared detector combines the advantages of mid-wave and long-wave detection into one cooled infrared detector assembly, which can simultaneously perform high-performance imaging in the dual wavebands, greatly reducing the false alarm rate. It can be used for the detection of complex backgrounds and the monitoring of high-speed moving targets.
