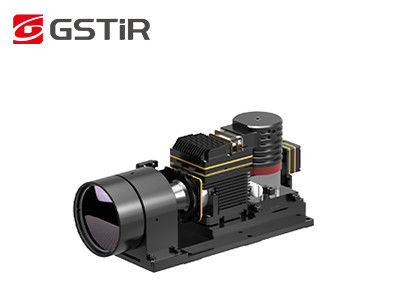

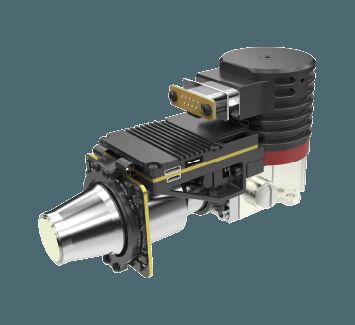

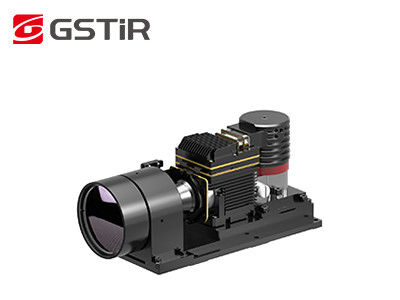

High-definition MWIR Cooled Infrared Camera Core with 1280×1024 Resolution, 18mK NETD, and 3.7μm～4.8μm Spectral Range

  • High-definition MWIR Cooled Infrared Camera Core with 1280×1024 Resolution, 18mK NETD, and 3.7μm～4.8μm Spectral Range
  • High-definition MWIR Cooled Infrared Camera Core with 1280×1024 Resolution, 18mK NETD, and 3.7μm～4.8μm Spectral Range
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Style Cooled Infrared Module Resolution 1280×1024/12μm
IR Detector NETD (23℃) 18mK (F2/F4) Spectral Range 3.7μm±0.2μm～4.8μm±0.2μm
Size 149×58.5×80mm Optional Lens Fixed Focus 19mm/F2
Highlight

Infrared Gas Leak Detection Camera

,

Petrochemical Infrared Gas Leak Detection Camera
Leave a Message
Product Description
High-definition MWIR Cooled Infrared Camera Core 1280×1024/12μm
Product Overview

The GAVIN GC1212MA is a high-definition MWIR cooled infrared camera core fitted with a self-developed 1280×1024/12μm cooled detector. When occupying the same active imaging area, its pixel count reaches four times that of conventional 640×512 detectors, facilitating wider field-of-view coverage and improved detail visibility. A full suite of built-in image processing algorithms enables direct high-definition image output. The camera core supports all-weather target detection and maintains stable performance under complex visibility scenarios and harsh environmental conditions.

Main Features
  • Megapixel Resolution, Exceptional Image Quality
    Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
  • High Reliability, Superior Sensitivity
    Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD as low as 18mK.
  • Easy Integration, Flexible Configuration
    Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
Model GAVIN GC1212MA
Indicators
Resolution 1280×1024
Pixel Size 12μm
Cryocooler RS058
Spectral Response 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃) 18mK(F2/F4)
Image Processing
Frame Rate 50Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1× to 8× continuous digital zoom
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm DRC, 2D/3D Image Noise Reduction, EE
Electrical
Standard External Interface J30JZ 25-pin HDMI Dedicated Output Interface
Analog Video PAL/NTSC
Digital Video Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync Standard: LV-TTL
Option: RS422/LVDS
Communication Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply 24V±4V
Steady Power Consumption(23℃) ≤11W
Cooling Time(23℃) ≤8min
Size(mm) 149×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens
Lens Options Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

Customized Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
Frequently Asked Questions
Advantages of Optical Gas Imaging
  • Time-saving & Efficient: Support large-scale real-time detection, rapid leak location, no need for interrupting production.
  • Long Range Detection: Away from dangerous and complex areas, non-contact non-destructive testing, without additional radiation source.
  • Easy to Analyze: Intuitive imaging, instant storage, convenient analysis.
  • Multi-function Inspection: A variety of gases can be detected, with excellent remote temperature measurement function.
Working Principle of Optical Gas Imaging

Optical gas imaging is a kind of infrared technology that could see invisible industrial gases. After absorbing infrared radiation at specific wavelengths, infrared radiation difference will cause between the gas and the background. The gas leak detection infrared detector with built-in narrowband filter only receives the infrared band near the gas infrared absorption peak, and can convert the gas into visible infrared images through the radiation difference between the gas and the background.
