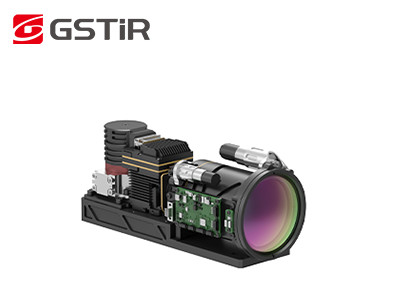

55mm Lens Optical Gas Imaging Module For VOCs Gas Leak Detection

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number GAS330
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Style Cooled Infrared Module Resolution 320x256 / 30μm
NETD ≤15mK Spectral Range 3.2±0.1~3.5±0.1μm
Size 155x67x80mm Optional Lens Fixed Zoom
Leave a Message
Product Description
GAS330 by GST Infrared



320x256 / 30μm Cooled Infrared Camera Module with 55mm Lens for VOCs Gas Leak Detection



Product Description



Volatile Organic Compounds, or VOCs, are gases that are emitted into the air from products or processes. Once they leak, it will lead a fatal risk for both employees and local residents.



GAS330 is a cooled infrared thermal module specially designed for gas leakage detection. It integrates 320x256 / 30µm MCT cooled MWIR infrared detector and utilizes spectral wavelength filtering technology to visualize the invisible VOCs that cannot be seen by naked eyes.



It is a very fast, contact-less measurement tool which can be used in difficult-to-access places. By using this thermal camera, the safety of both the inspector and the inspected item will be significantly increased.



Main Features



- Resolution: 320x256

- Pixel Pitch: 30µm

- NETD≤15mK, High Sensitivity

- Spectral Response: 3.2µm±0.1µm~3.5µm±0.1µm

- Wavelength Customizable Based on Different Requirements

- Integrate with DVP/CameraLink Interface Easily



Product Specifications



Model GAS330
IR Detector Performance
Resolution 320x256
Pixel Pitch 30μm
Cryocooler RS058
Spectral Range 3.2μm±0.1μm~3.5μm±0.1μm MW
Cooling Time (20°C) ≤8min
NETD (20°C) ≤15mK
Image Processing
Frame Rate 30Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 155×67×80
Weight ≤900g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Fixed Zoom: 23mm/F1.5; 55mm/F1.5



Industrial Applications



The GAS330 gas leak detection thermal imaging camera is used for visiualizing the invisible VOCs (volatile organic compounds) and detecting gas leakage such as: Methane, Ethane, Propane, Butane, Pentane, Hexane, Heptane, Octane, Ethylene, Propylene, Isoprene, Methanol, Ethanol, Butanone, Benzene, Toluene, Xylene, Ethylbenzene etc.



Praises from Customers



55mm Lens Optical Gas Imaging Module For VOCs Gas Leak Detection 0



FAQs



1. What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.



2. What are the main factors to measure the quality of Cryocooler?

Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.



3. What is MTTF?

MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
