400mW Split Rotary Stirling Engine Cryocooler Low Consumption
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Power | (@100K@20℃)＞400mW | Stable Power Consumption | <3.5W (130mW@100K@20°C) |
|---|---|---|---|
| Working Temperature | -45℃~+85℃ | Size | 45x34x67mm |
| Weight | ＜250g | MTTF | ＞10000h |
| High Light | Rotary Stirling Engine Cryocooler,Split Rotary Stirling Cryocooler,Low Consumption Stirling Engine Cryocooler |
||
Product Description

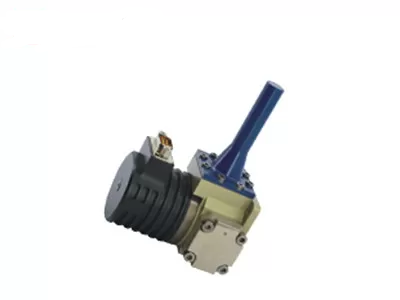

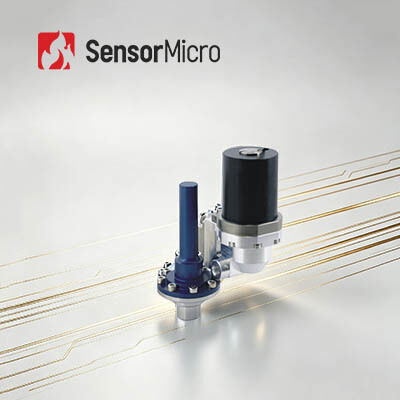

RS046H Cryo Cooler
400mW Split Rotary Stirling Engine Cryocooler Low Consumption
Product Description
RS046H is a split version of RS046 rotary stirling cooler developed by Global Sensor Technology (GST). With the same compressor structure of RS046, the split format RS046H is even smaller in size. The cold finger in RS046H dewar cooler has the same diameter as that in RS046 cooler but with shorter length. Benefit from the split design of the compressor and the cold finger, the infrared system with RS046H integrated is flexible in special design.
Global Sensor Technology is a supplier of thermal infrared detectors and infrared camera module. After years of industrial application experience, we are capable to provide professional, efficient and convenient solutions for customers in all industries with its core technology of independent R&D infrared detector.
Main Features
- MTTF＞10000hrs
- Cooling Power: (@100K@20℃)＞400mW
- Cooling Time: <5mins(110J@100K@20℃)
- Small Size
- Low Noise
- Low Consumption
Product Specifications
| Model | RS046H |
| Type | Split Rotary Stirling Cryocooler |
| MTTF | ＞10000hrs |
| Size (mm) |
45×34×67 Φ38×70 |
| Weight | ＜250g |
| Cooling Power | (@100K@20°C)＞400mW |
| Working Temperature | -45°C ~ +85°C |
| Storage Temperature | -56°C~ +85°C |
| Environmental Specification | MIL-STD-810 |
| Input Voltage | 24-32VDC |
| Max Power Consumption | <12W |
| Steady Power Consumption | <3.5W (130mW@100K@20°C) |
| Cooling Time | <5min (110J@100K@20°C) |
| Cold Finger Dimension | Φ6.4mm |
| Electronics | External |
| Integration Method | IDDCA |
Industrial Applications
The RS046H integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.
Praises from Customers
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
