12μM Megapixels Cooled FPA Detector High Sensitivity 1280x1024
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 1280x1024/12μm | NETD | ≤20mK (F2/F4) |
|---|---|---|---|
| Spectral Range | 3.7~4.8μm MW | Size | 149x58.5x71mm |
| Power Supply | 24V DC | Weight | ≤600g |
| High Light | Megapixels Cooled FPA Detector,12uM Cooled FPA Detector,Cooled Detector 1280x1024 |
||
Product Description

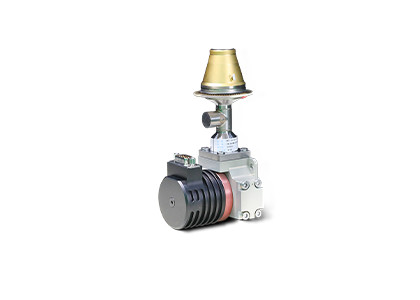

1280x1024 12μM Megapixels Cooled FPA Detector High Sensitivity
Product Description
The C1212M MWIR MCT FPA detector has high resolution, high performance and high reliability. It offers four times as many pixels in the same active image area as conventional 640x512 products. Its reduced 12µm pixel size offers better spatial resolution and matches shorter optical lens focus to achieve the same range mission. C1212M is an ideal choice for applications that require superior long range performance and image details recognition.
Main Features
Outstanding Performance
• 1280×1024 high definition for wider FOV and longer distance
• 12μm pixel size for better spatial resolution
Sharp & Clear Image
• High sensitivity, typical NETD as low as 18mK
• Good uniformity, effective pixel rate＞99.5%
Design for Specific Applications
• F number can be customized
• Guarantee continuous supply
Product Specifications
| Model | C1212M MW |
| Material | MCT |
| Resolution | 1280x1024 |
| Pixel Pitch | 12μm |
| Spectral Range | 3.7μm～4.8μm MW |
| Working Mode | Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming |
| Charge Capacity | 6.75Me-/4.8Me-(ITR) 5.25Me-/3.3Me-(IWR) |
| Dynamic Range | ITR Mode≥80dB IWR Mode≥76dB |
| Number of Output | 4 or 8; Up to 20Mpixel/s per Output |
| NETD | ≤20mK (F2/F4) |
| Effective Pixel Rate | ≥99.5% |
| Response Non-uniformity | ≤8% |
| Cryocooler Type | RS058F |
| Steady Power Consumption | ≤7W |
| Max Power Consumption | ≤17W |
| Power Supply | 24V DC |
| Cooling Time | ≤6min |
| Weight | ≤600g |
| Dimension (mm) | 149x58.5x71 |
| Working Temperature | -45°C ~ +71°C |
Industrial Applications
The C1212M MWIR cryogenically cooled infrared detector is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
Our Advantages
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
