400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
| Place of Origin | Wuhan, Hubei Province, China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | RS046 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | L/C,T/T |
Product Details
| Cooling Power | (@77K@20℃)＞400mW | MTTF | ＞10000h |
|---|---|---|---|
| Stable Power Consumption | ＜3.2W (130mW@100K@20℃) | Working Temperature | -45℃~+85℃ |
| Size | 95.6x81x46mm | Weight | ＜260g |
| Highlight | RS046 Integral Rotary Stirling Cryocooler,400mW Integral Rotary Stirling Cryocooler |
||
Product Description

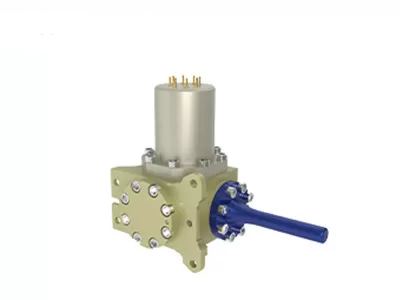

RS046 Detector Dewar Cooler
400mW RS046 Integral Rotary Stirling Cryocooler for Cooled Infrared Detectors
Product Description
RS046 is a self-developed integral rotary stirling cryocooler by SensorMicro. It has a cryogenic working environment to cool sensors, scientific instruments and optics etc.
With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.
It has highly efficient, dependable, proven performance solutions that meet customer’s specific performance requirements.
Main Features
- MTTF＞10000hrs
- Cooling Power: (@77K@20℃)＞400mW
- Cooling Time: <4.5mins(150J@77K@20℃)
- Small Size
- Low Noise
- Low Consumption
Product Specifications
| Model | RS046 |
| Type | Integral Rotary Stirling Cryocooler |
| MTTF | ＞10000hrs |
| Size (mm) | 95.6×81×46 |
| Weight | ＜260g |
| Cooling Power | (@77K@20°C)＞400mW |
| Working Temperature | -45°C~ +85°C |
| Storage Temperature | -56°C~ +85°C |
| Environmental Specification | MIL-STD-810 |
| Input Voltage | 24-32VDC/9-12VDC |
| Max Power Consumption | <12W |
| Steady Power Consumption | <3.2W (130mW@100K@20°C) |
| Cooling Time | <4.5min (150J@77K@20°C) |
| Cold Finger Dimension | Φ6.4mm |
| Electronics | External |
| Integration Method | IDDCA |
Industrial Applications
The RS046 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.
Our Product Line
High sensitivity and excellent performance
World-leading technology in infrared industry
Various infrared detectors available
Both uncooled and cooled lR detectors in different formats and pixel size
Volume production to ensure fast delivery
Three production lines with annual production capability up to millions of detectors.
FAQs
1.What is infrared thermal imaging?
Infrared thermal imaging is a kind of method which utilizes infrared radiation and thermal energy to gather information about objects. It converts invisible infrared radiation into visible infrared thermal image with temperature distribution of the target surface. Different objects and even different parts of the same object have different radiation ability and infrared reflection strength.
2.What can infrared imaging be used for?
-Night vision
-Search & rescue
-Non-destructive test
-Epidemic prevention
-Thermography
-Security & monitoring
-Firefighting
…
3.What is thermal imaging module?
A thermal imaging module usually consists of an infrared detector, infrared lens and hardware electronics with software and algorithm embedded. It is the minimum unit of a thermal imaging device.
