External Electronics Split Integrated Dewar Cooler Assembly Small Size
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Cooling Power | (@100K@20℃)＞400mW | Stable Power Consumption | <3.5W (130mW@100K@20°C) |
|---|---|---|---|
| Working Temperature | -45℃~+85℃ | Size | 45x34x67mm |
| Weight | ＜250g | MTTF | ＞10000h |
| High Light | External Electronics Integrated Dewar Cooler,Small Size Integrated Dewar Cooler,45mm Stirling Cryocooler |
||
Product Description

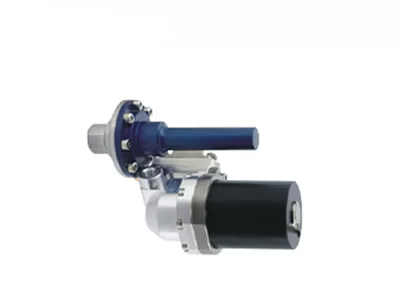

RS046H Cryo Cooler

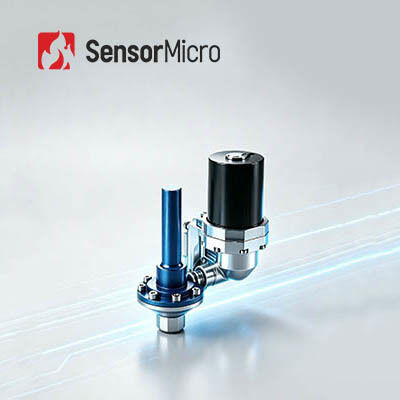

RS046H Split Integrated Dewar Cooler Assembly
Product Description
RS046H is a split version of RS046 rotary stirling cooler developed by Global Sensor Technology (GST). With the same compressor structure of RS046, the split format RS046H is even smaller in size.
The cold finger in RS046H dewar cooler has the same diameter as that in RS046 cooler but with shorter length. Benefit from the split design of the compressor and the cold finger, the infrared system with RS046H integrated is flexible in special design. What's more, the cooled detector itself is separated from the vibration source, which enables the RS046H optimal in application requiring better vibration and special conditions.
Due to its lightweight, miniaturization and low power consumption, it is easier for the cryo cooler to be integrated into various terminal products, which can greatly reduce the cost and meet different customized needs of customers.
Main Features
- MTTF＞10000hrs
- Cooling Power: (@100K@20℃)＞400mW
- Cooling Time: <5mins(110J@100K@20℃)
- Small Size
- Low Noise
- Low Consumption
Product Specifications
| Model | RS046H |
| Type | Split Rotary Stirling Cryocooler |
| MTTF | ＞10000hrs |
| Size (mm) |
45×34×67 Φ38×70 |
| Weight | ＜250g |
| Cooling Power | (@100K@20°C)＞400mW |
| Working Temperature | -45°C ~ +85°C |
| Storage Temperature | -56°C~ +85°C |
| Environmental Specification | MIL-STD-810 |
| Input Voltage | 24-32VDC |
| Max Power Consumption | <12W |
| Steady Power Consumption | <3.5W (130mW@100K@20°C) |
| Cooling Time | <5min (110J@100K@20°C) |
| Cold Finger Dimension | Φ6.4mm |
| Electronics | External |
| Integration Method | IDDCA |
Industrial Applications
The RS046H integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.
Our Advantages
FAQs
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. GSTiR cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
