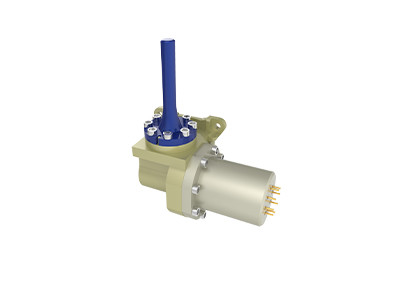

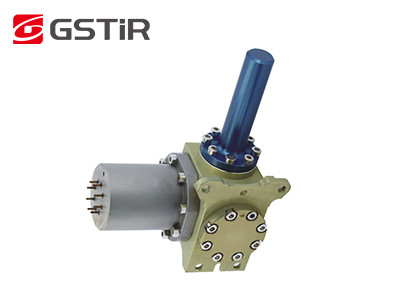

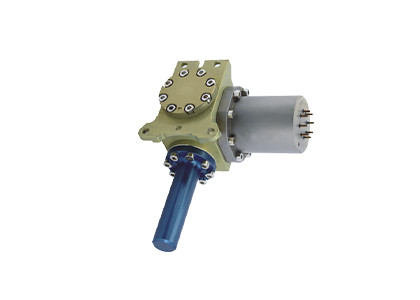

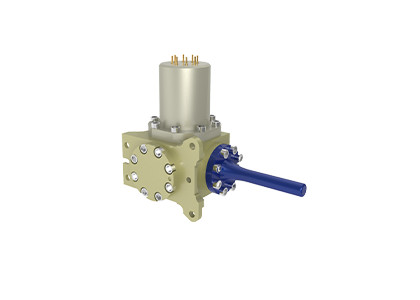

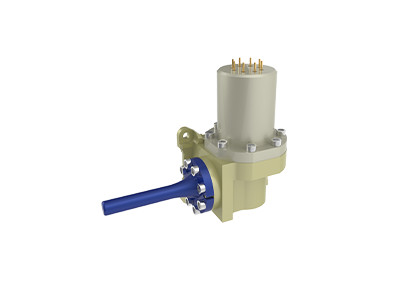

RS046 Integral Rotary Stirling Cryo Cooler Low Noise MTTF＞10000hrs

  • RS046 Integral Rotary Stirling Cryo Cooler Low Noise MTTF＞10000hrs
Place of Origin Wuhan, Hubei Province, China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number RS046
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C,T/T
Product Details
Cooling Power (@77K@20℃)＞400mW MTTF ＞10000h
Stable Power Consumption ＜3.2W (130mW@100K@20℃) Working Temperature -45℃~+85℃
Size 95.6x81x46mm Weight ＜260g
Highlight

RS046 Stirling Cryo Cooler

,

Low Noise Integral Stirling Cryocooler

,

10000 Hrs Stirling Cryocooler
Leave a Message
Product Description
RS046 Detector Dewar Cooler


RS046 Integral Rotary Stirling Cryo Cooler MTTF＞10000hrs


Product Description


RS046 is a member of the integral rotary stirling cryocooler series. It provides a miniature closed cycle cooling system to ensure a cryogenic working environment for the normal operation of cooled infrared detectors.


With compact mechanical structure, and advanced c-rings sealing, RS046 detector dewar cooler (ddc) was specially developed to fit the applications where low input power, volume and weight are the most important parameters.


Due to its lightweight, miniaturization and low power consumption, it is easier for the cryo cooler to be integrated into various terminal products, which can greatly reduce the cost and meet different customized needs of customers.


Main Features


- MTTF＞10000hrs

- Cooling Power: (@77K@20℃)＞400mW

- Cooling Time: <4.5mins(150J@77K@20℃)

- Small Size

- Low Noise

- Low Consumption


Product Specifications


Model RS046
Type Integral Rotary Stirling Cryocooler
MTTF ＞10000hrs
Size (mm) 95.6×81×46
Weight ＜260g
Cooling Power (@77K@20°C)＞400mW
Working Temperature -45°C~ +85°C
Storage Temperature -56°C~ +85°C
Environmental Specification MIL-STD-810
Input Voltage 24-32VDC/9-12VDC
Max Power Consumption <12W
Steady Power Consumption <3.2W (130mW@100K@20°C)
Cooling Time <4.5min (150J@77K@20°C)
Cold Finger Dimension Φ6.4mm
Electronics External
Integration Method IDDCA


Industrial Applications


The RS046 integrated dewar cooler assembly is used for provide cryogenic environment for the cooled infrared detectors.


About Us


As a world-leading manufacturer and service provider of infrared detectors, SensorMicro boasts years of profound experience in infrared thermal imaging solutions. Guided by the core philosophy of "SensorMicro, Sense More" and driven by user needs, we are dedicated to unlocking the full potential of infrared technology, delivering high-performance products and professional services to customers worldwide.


FAQs


1. What is a cryocooler used for?

Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.


2. What are the main factors to measure the quality of Cryocooler?

Long battery life and reliable operation are main factors to measure the quality of a cryocooler. Our cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.


3. What is MTTF?

MTTF (Mean Time to Failure) measures a part’s reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you’re buying. The longer they last, the more value you’re getting from them.
