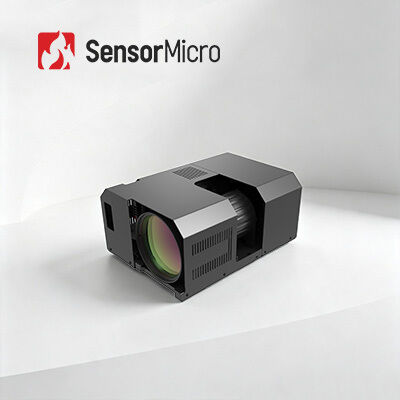

MWIR Cooled Thermal Module with 1280×1024 Resolution and 12μm Pixel Size for All-weather Applications

  • MWIR Cooled Thermal Module with 1280×1024 Resolution and 12μm Pixel Size for All-weather Applications
  • MWIR Cooled Thermal Module with 1280×1024 Resolution and 12μm Pixel Size for All-weather Applications
Place of Origin China
Brand Name SensorMicro
Certification ISO9001:2015; RoHS; Reach
Model Number GAVIN GC1212MA
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms T/T
Product Details
Resolution 1280×1024/12μm IR Detector NETD (23℃) 18mK (F2/F4)
Spectral Range 3.7~4.8μm MW Frame Rate 50Hz
Size 149×58.5×80mm Weight ≤680g
Highlight

Infrared System Thermal Module 15um

,

640x512 MWIR Thermal Module

,

Electro Optical MWIR Thermal Module
Leave a Message
Product Description
MWIR Cooled Thermal Module 1280×1024/12μm for All-weather Applications
Product Overview

Unlock superior thermal detection with the GAVIN GC1212MA HD MWIR cooled infrared camera core. Built around our self-developed 1280×1024, 12μm medium-wave infrared cooled detector, this core delivers fourfold pixel density compared to standard 640×512 sensors at identical imaging dimensions. Users benefit from a broader field of view and enhanced fine-detail recognition. Powerful embedded image processing algorithms produce native high-definition thermal video, enabling reliable all-weather target detection amid variable visibility and severe operating environments.

Main Features
  • Megapixel Resolution, Exceptional Image Quality - Powered by a 1280×1024/12μm mid-wave cooled infrared detector for sharp, detailed thermal imaging. Integrates advanced image processing algorithms including DRC, 2D/3D noise reduction, and edge enhancement (EE) for superior clarity.
  • High Reliability, Superior Sensitivity - Mid-wave cooled thermal imaging technology ensures excellent adaptability and consistency across applications. Outstanding thermal sensitivity with NETD as low as 18mK.
  • Easy Integration, Flexible Configuration - Supports CameraLink interface with RAW/YUV image data output. Multiple continuous zoom optical configurations available for different needs.
Product Specifications
Model GAVIN GC1212MA
Indicators Resolution: 1280×1024
Pixel Size: 12μm
Cryocooler: RS058
Spectral Response: 3.7μm±0.2μm～4.8μm±0.2μm
IR Detector NETD(23℃): 18mK(F2/F4)
Image Processing Frame Rate: 50Hz
Dimming Mode: Linear/Histogram/Mixed
Digital Zoom: 1× to 8× continuous digital zoom
Image Direction: Horizontally/Vertically/Diagonally Flip
Image Algorithm: DRC, 2D/3D Image Noise Reduction, EE
Electrical Standard External Interface: J30JZ 25-pin HDMI Dedicated Output Interface
Analog Video: PAL/NTSC
Digital Video: Standard: DVP
Option: Cameralink/USB3.0/GigE/SDI/HDMI/MIPI/Single-mode Optical Fiber/Multi-mode Optical Fiber
External Sync: Standard: LV-TTL
Option: RS422/LVDS
Communication: Standard: USB2.0/LV-TTL
Option: RS422/CAN/USB3.0/GigE
Power Supply: 24V±4V
Steady Power Consumption(23℃): ≤11W
Cooling Time(23℃): ≤8min
Size(mm) 149×58.5×80
Weight(g) ≤680
Operating Temperature -40℃~+71℃
Vibration Vibration: High-speed transport intensity; Impact: Half Sine Wave, 40g/11ms, 3 Axis, 6 Direction, 3 Times/Direction
Optical Lens Fixed focus: 19mm/F2
Continuous zoom: 60~360mm/F4, 37.5~750mm/F4, 100~1000mm/F4
Industrial Applications

The GAVIN GC1212MA thermal infrared camera module is widely used in many areas such as NDT, Environmental Monitoring, Long-Range Surveillance, Scientific Research etc.

Customized Service
  • Product Customization: Adjust configurations and adapt algorithms to meet industry-specific requirements
  • On-Site Technical Support & Training: Provide core customers with hands-on system setup and operational training
  • Joint Innovation for New Products & Markets: Collaborate with customers to co-develop innovative infrared application solutions
About Us

Our Vision: To push the boundaries of sensing and transform the way people connect with the world around them.

Our Mission: To harness the power of infrared sensing technology to transform industries worldwide, enabling smarter decisions, safer environments, and a more connected future.

Our Value: To create advanced infrared technology that makes the world a better place.

Frequently Asked Questions
1. What is a cryocooler used for?
Cryocoolers are machines that keep sensors extremely cold so that thermal images can be taken on long-term missions. In many high-end applications, the sensors that capture images require extremely low temperatures.
2. What are the main factors to measure the quality of Cryocooler?
Long battery life and reliable operation are main factors to measure the quality of a cryocooler. SensorMicro cryocooler has a wide operating temperature range and excellent reliability. Its MTTF (Mean Time to Failures) has reached to 10,000 hours, which meets 24*7 boot operation requirements.
3. What is MTTF?
MTTF (Mean Time to Failure) measures a part's reliability. It shows you how long on average a part lasts before it breaks and you have to replace it. On a basic level, it tells you about the quality of the parts you're buying. The longer they last, the more value you're getting from them.
4. What is MCT/HgCdTe detector?
MCT, also called HgCdTe, refers to Mercury-Cadmium-Tellurid which is a chemical compound of cadmium telluride (CdTe) and mercury telluride (HgTe) and a common material in photodetectors. MCT/ HgCdTe detector is a photoconductive detector that operates at a cryogenic environment and can detect infrared radiation. It is more sensitive than the thermal sensors.
