Product Details
Type Uncooled Camera Module Resolution 400x300 / 17μm
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz NETD <30mK
Typical Power Consumption <1.1W Weight ≤77g
High Light

LWIR Thermal Imaging Security Camera


Uncooled Thermal Imaging Security Camera


400x300 Thermal Security Camera

Leave a Message
Product Description

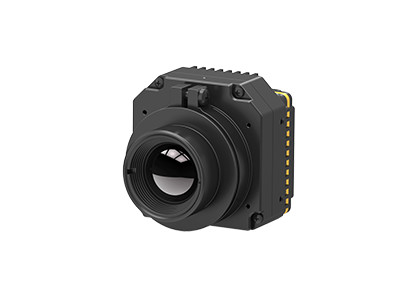

PLUG417 Infrared Module


LWIR 400x300 Thermal Imaging Security Camera Module Uncooled


Product Description


PLUG417 is a kind of thermal module that is specially used for fast integration into thermal security camera. Consisted of 400x300 / 17µm uncooled thermal imaging sensor, full series of optical components, signal processing circuit and unique image processing algorithm, the PLUG417 infrared camera module ensures clear image, smooth quality, superior performance and multiple lenses available.


PLUG417 IR thermal camera module provides a variety of industry common interfaces for the easy plug-in and integration into OME infrared surveillance cameras. We have some successful thermal imaging solutions to be applied into many applications.


GST cooled uncooled infrared detectors and thermal imaging modules can be widely used and integrated into security monitoring systems, such as smart city road traffic monitoring for improving the efficiency and safety of transport networks, infrastructure monitoring, fire security in the industrial areas, early fire detection for open areas or even over long distances, harbor protection, border security for preventing illegal border crossing, perimeter surveillance, maritime cruising, UAV payloads, electro optical system etc.


Main Features

- NETD<30mk, High Sensitivity
- Stable Performance
- Easy Integration & Plug-in
- Clear Image Quality & Details
- Strong Environmental Adaptability


Product Specifications


Model PLUG417
IR Detector Performance
Resolution 400x300
Pixel Pitch 17μm
Spectral Range 8~14μm
NETD <30mk
Image Processing
Frame Rate 9Hz/25Hz/30Hz/50Hz/60Hz
Start-up Time <10s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656/LVDS
Extension Component USB/Camerlink
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface 50pin_HRS Interface
Communication Mode RS232-TTL, 115200bps
Supply Voltage 4.5~6V
Typical Power Consumption <1.1W
Physical Characteristics
Dimension (mm) 44.5mmx44.5mmx36.6mm
Weight ≤77g
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 7.5mm/13mm/19mm/25mm/35mm/50mm/60mm/100mm
Motorized Lens: 75mm/100mm/150mm
Continuous Optical Zoom: 30-150mm


Industrial Applications


The PLUG417 thermal infrared camera module is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place.


LWIR 400x300 Thermal Imaging Security Camera Module Uncooled 0


Honors & Certificates


LWIR 400x300 Thermal Imaging Security Camera Module Uncooled 1



1.What is infrared detector / thermal imaging sensor?

Infrared waves cannot be seen with the human eye. Infrared detector / thermal imaging sensor is an optical-electrical device to react to infrared radiation and thermal energy and convert it into electrical signal and then output visible thermal images.


2.What is WLP?

WLP refers to wafer level package. It is the process of completing high vacuum packaging directly on the entire MEMS wafer, then scribing and cutting to make a single infrared sensor. Together with metal package, ceramic package, they are the 3 main package formats of uncooled infrared detectors.


3. What's the advantage of WLP?

WLP IR detectors are specially designed to meet the miniaturization and low cost requirement in the application of infrared technology to consumer electronics market. Global Sensor Technology, with volume fabrication capability, is now offering a variety of WLP infrared module solutions to boost more new applications of emerging markets.
