Uncooled LWIR 256x192 / 12μm Thermal Security Camera Module

I'm Online Chat Now

Uncooled LWIR 256x192 / 12μm Thermal Security Camera Module

Uncooled LWIR 256x192 / 12μm Thermal Security Camera Module
Uncooled LWIR 256x192 / 12μm Thermal Security Camera Module

Large Image :  Uncooled LWIR 256x192 / 12μm Thermal Security Camera Module

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: iLC212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 256x192 Weight: 8.9g±0.5g (including 3.2mm Lens)
Spectral Range: 8~14μm Pixel Pitch: 12μm
NETD: ≤65mK Frame Rate: 25Hz/30Hz
High Light:

iLC212 Thermal Security Camera

,

Thermal Security Camera Module Uncooled

,

256x192 Thermal Infrared Core

iLC212 Thermal Imaging Module

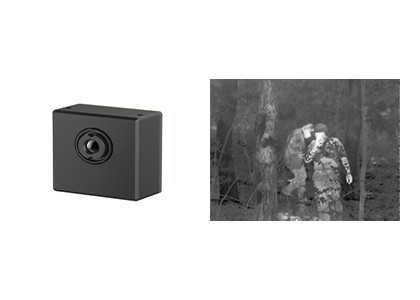

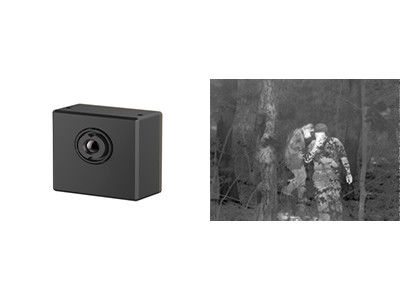

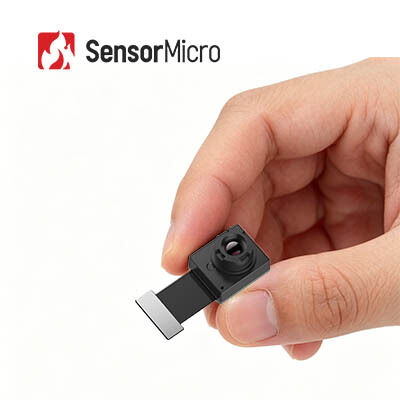

iLC212 Uncooled LWIR 256x192 / 12μm Thermal Imaging Module for Thermal Security Camera



Product Description



iLC212 uncooled IR imaging module, also known as the uncooled thermal module, is radiometric-capable and has available infrared non-contact temperature measurement function. It includes an exceptionally small size 256x192 / 12μm wafer level package (WLP) infrared detector that captures long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.



Due to its fully optimized SWaP-C, the iLC212 thermal camera module has low resolution, small size, low power consumption and very low price. Thus, in the field of security and monitoring, it is very suitable for the wide angle and close range temperature measurement and monitoring.



Main Features



- Fully Optimized SWaP-C applications

- Suitable for various infrared products

- A wide range of thermal imaging applications

- Low Power Consumption



Product Specifications



Model iLC212
IR Detector Performance
Material Uncooled Vanadium Oxide
Resolution 256×192
Pixel Size 12μm
Spectral Response 8μm ~14μm
NETD ≤65mK@F1.0@25℃@50Hz
Image Processing
Digital Video RAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate 25Hz/30Hz
Image Display Black-hot/white-hot/Pseudo-color
Image Algorithm Nonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time ≤3s
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy ±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature Measurement Support Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDK Windows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical interface
External interface 30pin_HRS Connector
Power Input
Digital Video
RS232-TTL/USB2.0
GPIO etc.
Communication RS232-TTL/USB2.0
Expansion Component VPC Board
PC Software
ICC Software Module Control and Video Display
Power System
Power Supply DC 3.3V±0.1V
Power Dissipation Steady State: 0.70W/3.3V @23±3℃
Physical Property
Connectors External Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size 21mm×21mm×12.8mm (including 3.2mm lens)
Weight 8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Impact & Vibration Resistance Impact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
Certification ROHS2.0/REACH
Lens
Optional Lens 3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR



Industrial Applications



The iLC212 thermal imaging module is applied to the field of security and monitoring, It is suitable to be integrated into the Hidden Camera, Digital Camera, Dome Camera, Box Camera etc.
