Product Description
Cooled Thermal Imaging Module for Thermal Security Camera

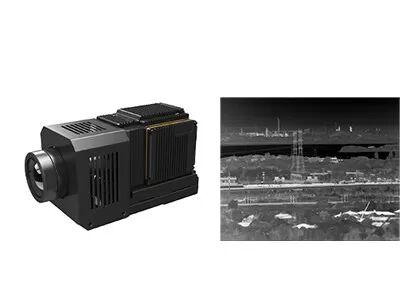

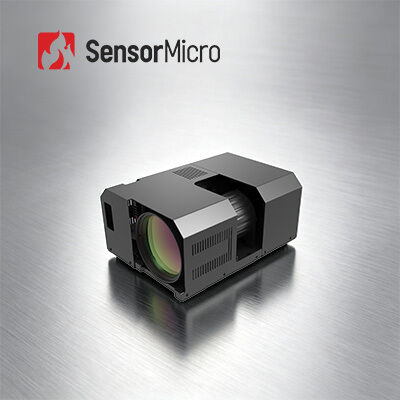

Ultra Clear 1280x1024 12μm Cooled Thermal Module for Long Range Monitoring



Product Description



GAVIN1212 high resolution thermal camera module integrates the large array 1280x1024 / 12μm MWIR cooled infrared detector with the detector dewar cooler (ddc) inside. It is widely used in the security monitoring applications such as fire prevention, harbour protection, investigation, remote surveillance, border guard and the protection of critical infrastructure and can be mounted on platforms such as security cameras, airborne pods, vehicle turrets etc.



The high resolution thermal module adopts various intelligent image processing algorithms, such as non-uniformity correction, auto gain control, and others to ensure good thermal imaging quality. With rich interfaces, small size, high reliability and strong expansibility, its module design facilitates end user to start fast integration. This infrared camera module supports 24/7 surveillance regardless of weather, adverse ambient conditions or poor visibility.



GST cooled uncooled infrared detectors and thermal imaging modules can be widely used and integrated into security monitoring systems, such as smart city road traffic monitoring for improving the efficiency and safety of transport networks, infrastructure monitoring, fire security in the industrial areas, early fire detection for open areas or even over long distances, harbor protection, border security for preventing illegal border crossing, perimeter surveillance, maritime cruising, UAV payloads, electro optical system etc.



Main Features



- Meet the Needs of Long Range Detection

- High Sensitivity, NETD≤20mK

- Wide Field of View, Resolution up to 1280x1024

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤8min
NETD (20°C) ≤20mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin; HDMI Special Output Interface
Analog Video /
Digital Video HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 24V±1V
Stable Power Consumption 16W
Dimension (mm) 165x86x107
Weight ≤1600g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2



Industrial Applications



The GAVIN1212 thermal infrared camera module is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place. It can be integrated into Border Security Systems, Electro Optical Infrared Systems, UAV Payloads, Shipborne Systems etc.



Ultra Clear 1280x1024 12μM Cooled Thermal Module For Long Range Monitoring 0



About GST Infrared



Ultra Clear 1280x1024 12μM Cooled Thermal Module For Long Range Monitoring 1

Ultra Clear 1280x1024 12μM Cooled Thermal Module For Long Range Monitoring 2



FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.



2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
