High Definition MCT Infrared Detector Large Array 1280x1024 12μm

I'm Online Chat Now

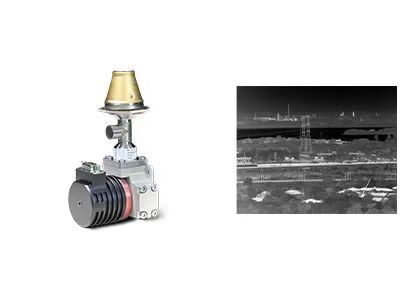

High Definition MCT Infrared Detector Large Array 1280x1024 12μm

High Definition MCT Infrared Detector Large Array 1280x1024 12μm
High Definition MCT Infrared Detector Large Array 1280x1024 12μm

Large Image :  High Definition MCT Infrared Detector Large Array 1280x1024 12μm

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: C1212M MWIR
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 1280x1024/12μm NETD: ≤20mK (F2/F4)
Spectral Range: 3.7~4.8μm MW Size: 149x58.5x71mm
High Light:

High Definition MCT Infrared Detector

,

MCT Infrared Detector Large Array

,

MCT Infrared Detector 1280x1024

C1212M MWIR by GST Infrared



High Definition Large Array 1280x1024 / 12μm MCT Cooled Infrared Detector for Clear Thermal Imaging



Product Description



C1212M MWIR is one of the HgCdTe/MCT cooled mid wavelength infrared detector developed by Global Sensor Technology (GST). It is a combination of high definition, high performance and high reliability.



The C1212M MWIR MCT Cooled Infrared detector offers four times as many pixels in the same active image area as conventional 640x512 products. With large array 1280x1024 resolution it can realize wider field of view and provide more image details. The reduced 12µm pixel size offers better spatial resolution and match shorter optical lens focus to achieve the same range mission.



C1212M MWIR HgCdTe infrared detector is an ideal choice for thermal imaging applications that require superior long range performance and image details recognition in a low size, weight, and power package.



 Main Features


- Resolution: 1280x1024
- Pixel Pitch: 12μm
- High Sensitivity
- Compact Design
- Lightweight
- Low Power Consumption



Product Specifications



Model C1212M MW
Material MCT
Resolution 1280x1024
Pixel Pitch 12μm
Spectral Range 3.7μm~4.8μm MW
Working Mode Snapshot, ITR/IWR Integration Mode; Windows Mode; Anti-blooming
Charge Capacity 6.75Me-/4.8Me-(ITR)
5.25Me-/3.3Me-(IWR)
Dynamic Range ITR Mode≥80dB
IWR Mode≥76dB
Number of Output 4 or 8; Up to 20Mpixel/s per Output
NETD ≤20mK (F2/F4)
Effective Pixel Rate ≥99.5%
Response Non-uniformity ≤8%
Cryocooler Type RS058F
Steady Power Consumption ≤7W
Max Power Consumption ≤17W
Power Supply 24V DC
Cooling Time ≤6min
Weight ≤600g
Dimension (mm) 149x58.5x71
Working Temperature -45°C ~ +71°C



Industrial Applications


The C1212M MWIR cryogenically cooled infrared detector is suitbale for the long range monitoring system and complex environments, such as scarcely populated area, 24/7 all weather monitoring, harsh weather place.

High Definition MCT Infrared Detector Large Array 1280x1024 12μm 0



Our Product Line


High Definition MCT Infrared Detector Large Array 1280x1024 12μm 1


FAQs



1. What is infrared thermal imaging?

Infrared thermal imaging is a method of using infrared radiation and thermal energy to gather information about objects, in order to formulate images of them, or get temperature information of the objects, even in low visibility environments.



2. How does Infrared Thermal Imaging Work?
Infrared thermal imaging system is a passive non-contact detection and identification of infrared technology. It focuses the infrared radiation of the scene on the focal plane array infrared detector through the infrared optical system that can pass through infrared radiation. The thermal detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
