Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads

  • Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads
  • Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads
  • Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads
  • Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads
Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iTL612/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

x
Product Details
Resolution 640x512 Power Consumption 0.7W
Spectral Range 8~14μm Pixel Pitch 12μm
Typical NETD ≤40mk Frame Rate 30Hz
High Light

LWIR Thermal Imaging Module 12uM

,

UAV Payloads LWIR Thermal Imaging Module

,

LWIR Thermal Camera Core 640x512
Leave a Message
Product Description

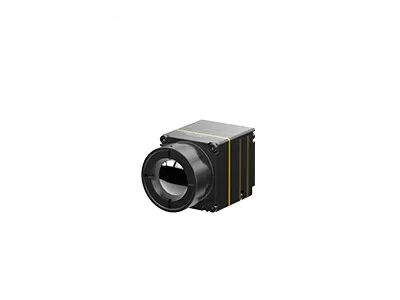

Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads



Product Description

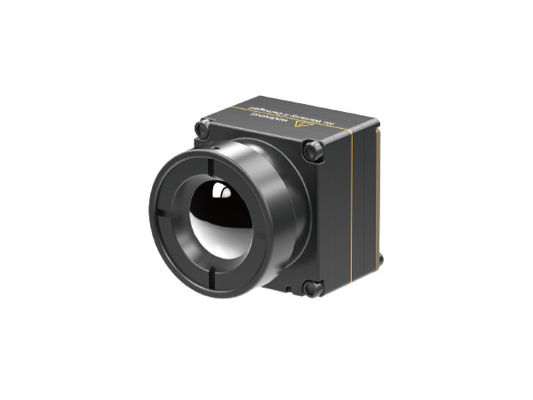

The iTL612R is an uncooled LWIR radiometric thermal imaging module for drones with spectral range from 8 to 14μm. Integrated the GST self-developed wafer-level-packaging 640×512/12μm infrared detector, the iTL612 infrared camera module has powerful image processing algorithms and optional radiometric function so that targets can be easily identified in long-distance high-altitude scenes.



With mini size at 21mm×22.3mm×27.3mm and light weight as low as 21g, the iTL612uncooled thermal imaging module is very suitable to be integrated into drones with strict space requirements. Its compact design has reached the top level of the same specification thermal camera modules. Besides, its optimized circuit structure design guarantees steady power consumption as low as 0.7W, which effectively improves the long battery life of the infrared system.

The iTL612 thermal module is specially developed for the field of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.



Main Features


Compact & Lightweight Design
• Size: 21mm×22.3mm×27.3mm (with 9.1mm lens)
• Weight: 20.8g±1.5g (with 9.1mm lens)
• Low power consumption as low as 0.7W

Clear Image & Accurate Radiometry
• Brand new image process algorithm: NUC/3DNR/DNS/DRC/EE
• Support Windows/Linux/ARM SDK
• Support regional, point & isotherm temperature measurement

Various Interfaces for Easy Integration
• DVP/LVDS/USB2.0 interfaces, RAW/YUV image data output, serial port control


Product Specifications



Model iTL612/R
IR Detector Performance
Sensitive Material Vanadium Oxide
Resolution 640×512
Pixel Size 12μm
Spectral Range 8~14μm
Typical NETD ≤40mk
Image Processing
Frame Rate 30Hz
Start-up Time 5s
Digital Video RAW/YUV/BT656
Image Algorithm Non-uniformity Correction (NUC)
3D Noise Reduction (3DNR)
De-noise (DNS)
Dynamic Range Compression (DRC)
Edge Enhancement (EE)
Image Display Black Hot/White Hot/Pseudo Color
PC Software
ICC Software Module Control & Video Display
Electrical Specifications
Standard External Interface 30Pin_HRS: DF40C-30DP-0.4V(51), (HRS, Male)
USB Expansion Board Type-C
Communication Interface RS232-TTL/USB2.0
Digital Video Interface CMOS8/USB2.0
Supply Voltage 3.3V±0.1V VDC
Typical Power Consumption 0.7W
Temperature Measurement
Operating Temperature Range -10°C~+50°C
Temperature Measurement Range -20°C~+150°C, 0°C~550°C; Support Customization and Expansion
Temperature Measurement Accuracy Greater of ±3°C or ±3% (@23℃±3℃)
Regional Temperature Measurement Support Maximum, Minimum and Average Value of the Output Regional Temperature
SDK Support Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature
Physical Characteristics
Size (mm) 21×22.3×27.3 (With 9.1mm Lens)
Weight 20.8g±1.5g (With 9.1mm Lens)
Environmental Adaptability
Operating Temperature -40°C~+70°C
Storage Temperature -45°C~+85°C
Humidity 5%~95%, Non-condensing
Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Certificates ROHS2.0/REACH
Optics
Optional Lens Fixed Focus Athermal: 9.1mm



Industrial Applications


The iTL612/R thermal imaging module can be integrated into UAV payloads and wearable devices so that is widely used in fields of Predictive Maintenance, Photovoltaic Inspection, Environmental Protection, Scientific Research, Aerial Photography, Police Investigation, Relief & Rescue, Forest Fire Prevention, Urban Safety etc.
Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads 0


Our Advantages


Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads 1

Uncooled LWIR Thermal Imaging Module 640x512 12um for UAV Payloads 2


FAQs



1.What is Pseudo Color?

Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.



2. How many pseudo color can GST thermal imaging module offer?

- White Hot

- Lava

- Ironbow

- Hot Iron

- Medical

- Arctic

- Rainbow1

- Rainbow2

- Red Hot

- White Hot
