Uncooled FPA Thermographic Thermal Camera Core 400x300 17um
Contact me for free samples and coupons.
Whatsapp:0086 18588475571
Wechat: 0086 18588475571
Skype: sales10@aixton.com
If you have any concern, we provide 24-hour online help.
xProduct Details
| Resolution | 384x288 /17μm | NETD | ≤50mK |
|---|---|---|---|
| Spectral Range | 8~14μm | Size | 21x22.3x15.6mm (With 9.1mm Lens) |
| Temperature Range | -20℃~+550℃ (Customizable) | Temperature Accuracy | ±3℃ Or ±3% |
| High Light | FPA Thermal Camera Core,Uncooled FPA Thermal Camera Core,Thermographic Camera Core 400x300 |
||
Product Description

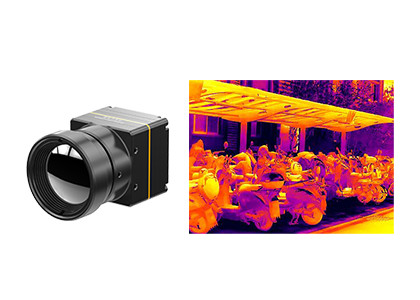

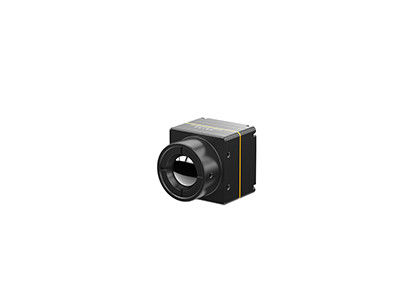

Uncooled FPA Thermographic Thermal Camera Core 400x300 17um
Product Description
COIN417G2 uncooled infrared module is a new generation version of COIN417 developed by Global Sensor Technology (GST). It integrates 400x300/17μm wafer level package (WLP) infrared imaging detector, high performance signal processing circuit and image processing algorithm. The infrared core performance has been further improved with upgraded ASCI chip. Besides, its image performance increases 30% by using advanced image processing algorithm.
The COIN417G2 infrared module features in sharp and crisp thermal image presentation, compact size and low cost. It also has an optional thermographic function with measurement range from -20℃~550 ℃ for industrial temperature measurement.
Until now, we have provided our customers with various mature and stable infrared thermal imaging solutions. It’s easier for COIN series thermal imaging common module to be integrated into more terminal products and greatly reduces the cost for customers.
The COIN417G2 thermal module be used in Thermography, Security Monitoring, Firefighting & Rescue, Outdoors, AIoT, Smart Hardware, UAVs Payload, ADAS etc.
Main Features
- Mini Size: 25.4x25.4x29.3mm (with 9.1mm Lens)
- Light Weight: 29g±3g (with 9.1mm Lens)
- Typical NETD≤40mk
- Enhanced Image Quality
- Low Power Consumption
- Rapid Development & Integration
Product Specifications
| Model | COIN417G2/R |
| IR Detector Performance | |
| Material | VOx |
| Resolution | 400×300 |
| Pixel Pitch | 17μm |
| Spectral Range | 8μm ~14μm |
| Typical NETD | ≤40mK |
| Image Processing | |
| Frame Rate | 50Hz/30Hz/25Hz |
| Start-up Time | 3s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV/BT656 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Reduction (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Digital Zoom | 1X~8X Continuous Zoom, 1/8 Step Size (YUV Output) |
| Image Display | Black Hot/White Hot/Pseudo Color |
| PC Software | |
| ICC Software | Module Control and Video Display |
| Electrical Specification | |
| Standard External Interface | 50Pin_HRS: DF40C-50DP-0.4V(51), (HRS, Male) |
| USB Extension Board | Type-C |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | CMOS8/CMOS16/LVDS/USB2.0 |
| Supply Voltage | 4~5.5V |
| Typical Power Consumption | 0.7W |
| Temperature Measurement | |
| Operating Temperature Range | -10℃~+50℃ |
| Temperature Measurement Range | -20℃~150℃, 0℃~550℃; Support Customization and Expansion |
| Temperature Measurement Accuracy | Greater of ±3℃ or ±3% |
| Regional Temperature Measurement | Support Maximum, Minimum and Average Value of the Output Regional Temperature |
| SDK | Windows/Linux/ARM; Achieve Video Stream Analysis and Conversion from Gray to Temperature |
| Physical Characteristics | |
| Size (mm) | 25.4×25.4×29.3(With 9.1mm Lens) 25.4×25.4×41.2(With 13mm Lens) 25.4×25.4×40(With 19mm Lens) |
| Weight | 29g±3g(With 9.1mm Lens) 42g±3g(With 13mm Lens) 44g±3g(With 19mm Lens) |
| Environmental Adaptability | |
| Operating Temperature | -40℃～+70℃ |
| Storage Temperature | -45℃～+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, 3-axis |
| Shock | Half Sine Wave, 40g/11ms, 3-axis, 6-direction |
| Certificates | ROHS2.0/REACH |
| Optics | |
| Optional Lens | Fixed Athermal: 9.1mm/13mm/19mm |
| Protection Level | IP67 |
Infrared Applications
Our Advantages
FAQs
1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.
2. How many pseudo color can GST thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
