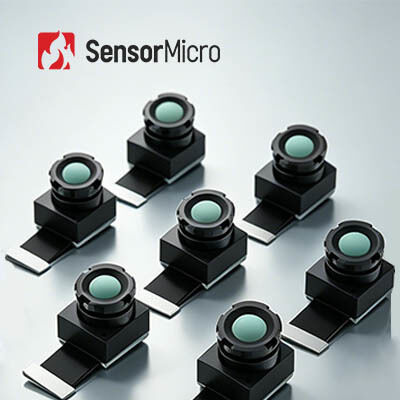

Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number iLC212
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 256x192 Power Consumption 700mW
Spectral Range 8~14μm Pixel Pitch 12μm
NETD ≤65mK Frame Rate 25Hz/30Hz
High Light

Micro LWIR Thermal Camera Core


LWIR Thermal Camera Core 256x192


12uM Uncooled LWIR Thermal Camera

Leave a Message
Product Description
iLC212 Thermal Security Camera Module

Uncooled Micro LWIR 256x192 12μm Thermal Camera Core with 3.2mm Lens


Product Description

iLC212 uncooled IR imaging module integrates the 256x192 / 12μm focal plane array wafer level package (WLP) infrared detector and can capture long-wave infrared (LWIR) spectrum that ranges from 8 to 14μm.
Oriented for fully optimized SWaP-C, the iLC212 thermal camera module is specially designed for those customers who has strict requirements about size, weight and cost in the area of security and surveillance. Due to its miniature size, light weight and very low price, the iLC212 thermal core greatly meets the customers' low price demands, shorten their developement time and save costs for them.
Global Sensor Technology specializes in the design, manufacture, sales and marketing of thermal imaging detectors and infrared modules. We can provide our customers a variety of infrared thermal imaging solutions which shorten secondary development time and greatly reduce the cost for customers.

Main Features

- Fully optimized SWaP-C application
- Suitable for various security thermal cameras
- A wide range of thermal imaging applications
- Low Power Consumption

Product Specifications


Model iLC212
IR Detector Performance
Material Uncooled Vanadium Oxide
Resolution 256×192
Pixel Size 12μm
Spectral Response 8μm ~14μm
NETD ≤65mK@F1.0@25℃@50Hz
Image Processing
Digital Video RAW/YUV/BT656; Support USB2.0 Video Transmission; Temperature Measurement Support Parameter Line
Digital Frame Rate 25Hz/30Hz
Image Display Black-hot/white-hot/Pseudo-color
Image Algorithm Nonuniformity Correction (NUC)
3D Image Noise Reduction (3DNR)
2D Noise Reduction (DNS)
Dynamic Range Compression (DRC)
EE Enhancement
Start-up Time ≤3s
Temperature Measurement
Operating Temperature Range -10℃~+50℃
Temperature Measurement Range -20℃~+150℃, Support Temperature Measurement Range Expansion and Customization
Temperature Measurement Accuracy ±3℃/±3% (take the larger value) @23℃±5℃; the Temperature Measurement Distance is 1.5m
Regional Temperature Measurement Support Any Area Temperature Measurement, Output Area Maximum Value, Minimum Value and Average Value
SDK Windows / Linux Version, Achieve Video Stream Analysis and Gray to Temperature Conversion
Electrical Interface
External Interface 30pin_HRS Connector
Power Input
Digital Video
GPIO etc.
Communication RS232-TTL/USB2.0
Expansion Component VPC Board
PC Software
ICC Software Module Control and Video Display
Power System
Power Supply DC 3.3V±0.1V
Power Dissipation Steady State: 0.70W/3.3V @23±3℃
Physical Property
Connectors External Connector Model: DF40C-30DP-0.4V (51), (HRS-Male)
Mating Connector Model: DF40C (2.0)-30DS-0.4V (51), (HRS-Female)
Size 21mm×21mm×12.8mm (including 3.2mm lens)
Weight 8.9g±0.5g (including 3.2mm lens)
Environmental Adaptability
Operation Temperature -40℃~+70℃
Storage Temperature -45℃~+85℃
Humidity 5%~95%, non-condensing
Impact & Vibration Resistance Impact: half sine wave, 40g/11ms, 3-axis, 6-direction
Vibration: 5.35grms, 3 axis
Certification ROHS2.0/REACH
Optional Lens 3.2mm/F1.1, HFOV: 55.6±2.8°; Coating: AR


Industrial Applications

The iLC212 thermal imaging module is applied to the field of Security Monitoring, Thermography, Wearable Device, Vehicle Electronics, Smart Home, Living Creatures Detection etc.

Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens 0


Uncooled Micro LWIR Thermal Camera Core 256x192 12μM With 3.2mm Lens 1



1.What is Pseudo Color?
Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.


2. How many pseudo color can GST thermal imaging module offer?
- White Hot
- Lava
- Ironbow
- Hot Iron
- Medical
- Arctic
- Rainbow1
- Rainbow2
- Red Hot
- White Hot
