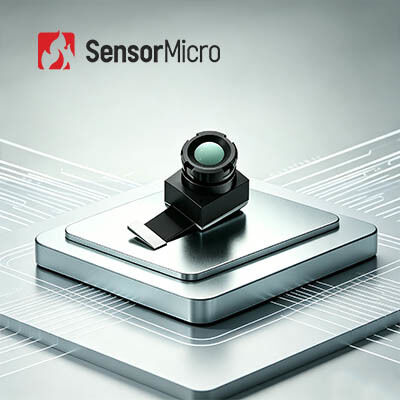

Uncooled LWIR Thermal Camera Module 256x192 12μM For Smart Home

Place of Origin Wuhan, Hubei Province, China
Brand Name GST
Certification ISO9001:2015; RoHS; Reach
Model Number COIN212/R
Minimum Order Quantity 1 Piece
Price Negotiable
Payment Terms L/C, T/T

Contact me for free samples and coupons.

Whatsapp:0086 18588475571

Wechat: 0086 18588475571

Skype: sales10@aixton.com

If you have any concern, we provide 24-hour online help.

Product Details
Resolution 256x192/12μm NETD <40mK
Temperature Range -20℃~+150℃ (Customizable) Temperature Accuracy ±3℃ Or ±3%
Weight 7.5g±0.5g (With Lens) Size 20x20x10.4 (With Lens)
High Light

LWIR Thermal Camera Module 256x192


Smart Home Thermal Camera Module 12uM


12uM LWIR Thermal Camera Core

Leave a Message
Product Description
COIN212/R Thermal Module


Thermal Camera Module Uncooled LWIR 256x192/12μm for Smart Home


Product Description


COIN212/R LWIR thermal imaging camera core is almost the same size as that of a dime. It integrates 256x192 / 12μm focal plane array (FPA) uncooled VOx infrared detector and has an optional thermographic function with measurement range from -20℃~150 ℃ for industrial or body temperature measurement.


Thanks to its rugged and compact design with various industry standard interfaces, this small infrared camera module can be widely used in infrared thermal imaging applications such as Thermography, Smart Hardware, Drones, Advanced Driver Assistance System etc. It is beneficial to OEM customers for secondary development and integration in all kinds of thermal imagers and infrared thermographic cameras.


Main Features


- Fully optimized SWaP-C: Size, Weight, Power, Cost

- Greater sensitivity than the normal thermopile

- Multiple interfaces for easy integration

- Rapid Secondary Development


Product Specifications


Model COIN212/R
IR Detector Performance
Resolution 256x192
Pixel Pitch 12μm
Spectral Range 8~14μm
NETD <40mk
Image Processing
Frame Rate 25Hz/30Hz/50Hz/60Hz
Start-up Time <3s
Analog Video PAL/NTSC
Digital Video RAW/YUV/BT656
Dimming Mode Linear/Histogram/Mixed
Digital Zoom 1~8X Continual Zoom, Step Size 1/8
Image Display Black Hot/White Hot/Pseudo Color
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE/DNR
Electrical Specification
Standard External Interface 30pin_HRS
Communication Mode RS232-TTL, 115200bps
Supply Voltage 3.5~5.5V
Typical Power Consumption <0.4W
Temperature Measurement
Operating Temperature Range -10°C~50°C
Temperature Measurement Range -20°C~150°C, 100°C~550°C
Temperature Accuracy ±3°C or ±3% (Take the Maximum Value)
SDK Support ARM/Windows/Linux SDK, Full Screen Thermography
Physical Characteristics
Dimension (mm) 20x20x10.4 (With Lens)
Weight 7.5g±0.5g (With Lens)
Environmental Adaptation
Operation Temperature -40°C ~ +70°C
Storage Temperature -45°C ~ +85°C
Humidity 5%~95%, Non-condensing
Vibration Random Vibration 5.35grms, 3 Axis
Shock Half-sine Wave, 40g/11ms, 3 Axis 6 Direction
Optional Lens Fixed Focus Athermal: 3.2mm


Industrial Applications


The COIN212/R thermal camera module is widely used in Thermography, Security & Monitoring, Outdoors, Firefighting & Rescue, AIoT, Intelligent Hardware, UAV Payloads, ADAS etc.


Uncooled LWIR Thermal Camera Module 256x192 12μM For Smart Home 0


Cooled Uncooled Infrared Detector


Uncooled LWIR Thermal Camera Module 256x192 12μM For Smart Home 1




1.What is Pseudo Color?

Pseudo color, also called false color, the thermal distribution of objects can be transformed into visual pictures by the infrared thermal imaging system and displayed on the monitor in grey level or pseudo color. Thus the temperature distribution of objects can be obtained. To make it easier for people to easily analyze a thermal image visually it is represented using a false colors representing the difference in temperature.


2. How many pseudo color can GST thermal imaging module offer?

- White Hot

- Lava

- Ironbow

- Hot Iron

- Medical

- Arctic

- Rainbow1

- Rainbow2

- Red Hot

- White Hot
