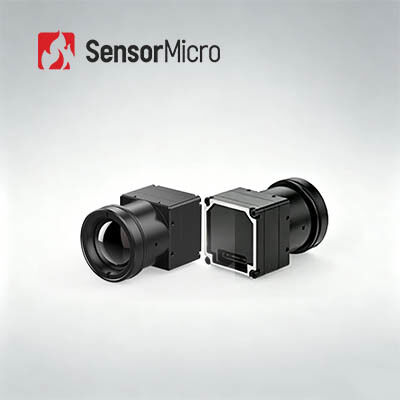

Uncooled LWIR 640x512 Resolution 12μm Pixel Size Thermal Imaging Module for Firefighting & Rescue
| Place of Origin | China |
|---|---|
| Brand Name | SensorMicro |
| Certification | ISO9001:2015; RoHS; Reach |
| Model Number | COIN612G2 |
| Minimum Order Quantity | 1 Piece |
| Price | Negotiable |
| Payment Terms | T/T |
Product Details
| Resolution | 640x512 / 12μm | Typical NETD | ≤25mK/F1.0/25℃ |
|---|---|---|---|
| Spectral Range | 8~14μm | Bare Core Size | 25.4mm×25.4mm×15.7mm |
| Digital Video | RAW/YUV422 | Analog Video | PAL/NTSC |
| Highlight | 640x512 LWIR Thermal Imaging Module,Smart Breeding LWIR Thermal Imaging Module |
||
Product Description
Uncooled LWIR 640x512 / 12μm Thermal Imaging Module for Firefighting & Rescue
Product Overview
The COIN612G2 infrared camera core is an ideal ready-to-integrate thermal imaging solution that combines sharp thermal detection, compact size, and budget-friendly pricing. Equipped with a 640×512 12μm ApexCore wafer-level detector and advanced imaging algorithms, it achieves outstanding temperature sensitivity (NETD ≤25mK) to rapidly pinpoint hidden hotspots and deliver crystal-clear thermal imagery.
Supporting mainstream serial communication plus USB 2.0, DVP, LVDS, and BT.656 video outputs, and paired with a full range of interchangeable lenses, this core eliminates complex secondary development work. Whether developing industrial inspection equipment, night surveillance cameras, outdoor observation devices, or AIoT thermal terminals, this all-in-one core provides reliable, compact, and cost-effective thermal imaging capabilities.
Key Features
Comprehensive Functionality, Budget-Friendly
- Industry-leading ApexCore detector with ≤25mK NETD
- Advanced processing algorithms elevate thermal image definition
Ultra-Compact Light Build
- 25.4×25.4×15.7mm miniature body
- Merely 15±1g weight
- Power consumption capped at 0.65W
Flexible Interfaces & Simple Integration
- Wide lens options for varied use cases
- Multiple digital video outputs
- Freely switchable RAW/YUV data with serial control access
Technical Specifications
| Model | COIN612G2 |
| IR Detectors Indicators | |
| Sensitive Material | VOx |
| Resolution | 640×512 |
| Pixel Size | 12μm |
| Spectral Response | 8μm ~ 14μm |
| Typical NETD | ≤25mK/F1.0/25℃ |
| Image Processing | |
| Digital Frame Rate | 25/30/50Hz |
| Start-up Time | 6s |
| Analog Video | PAL/NTSC |
| Digital Video | RAW/YUV422 |
| Image Algorithm | Non-uniformity Correction (NUC) 3D Noise Reduction (3DNR) 2D Noise Suppression (DNS) Dynamic Range Compression (DRC) Edge Enhancement (EE) |
| Image Display | 10 Types (White Hot/Lava/Iron Red/Hot Iron/Medical/Arctic/Rainbow 1/Rainbow 2/Tint/Black Hot) |
| PC Software | |
| ICC Software | Module Control & Video Display |
| Electrical | |
| Standard External Interface | 50pin: DF40C-50DP-0.4V(51), (HRS,Male) |
| Extension Board | USB3.0/USB2.0/VPC/USB2.0&VPC |
| Communication Interface | TTL-232/USB2.0 |
| Digital Video Interface | DVP8/DVP16/USB2.0/BT.656/LVDS |
| Supply Voltage | 4.5~5.5V |
| Typical Power Consumption | 0.65W |
| Mechanical | |
| Bare Core Size(mm) | 25.4×25.4×15.7 |
| Bare Core Weight(g) | 15±1g |
| Environmental Adaptability | |
| Operating Temperature | -40℃~+70℃ |
| Storage Temperature | -45℃~+85℃ |
| Humidity | 5%~95%, non-condensing |
| Vibration | 5.35grms, Random Vibration, 3-axis |
| Impact | Half Sine Wave, 40g/11ms, Impact Direction X Axis, 3 times |
| Certification | ROHS2.0/REACH |
| Optical Lens | |
| Optical Lens | Fixed Focus Athermal: 4.8mm/7mm/9.1mm/13mm/19mm/25mm/35mm/50mm/70mm |
| Protection Level | IP67(Front Lens) |
Industrial Applications
The COIN612G2 thermal camera core can be used in Security Monitoring, Industrial Vision, Outdoor Observation, Firefighting & Rescue, ADAS, Machine Vision, and related fields.
About SensorMicro
SensorMicro is the world's leading infrared detector manufacturer and service provider, delivering high-performance uncooled and cooled thermal imaging detectors along with professional application experience to customers worldwide.
We provide advanced infrared detectors, camera cores, and modules with versatile formats and wavebands. Designed for clarity, sensitivity, and efficiency, our products integrate seamlessly into diverse systems—empowering next-generation imaging and sensing applications across industries.
SensorMicro detectors have been widely used in thermography, security & surveillance, personal vision, automotive, and consumer infrared products. Our volume production capability enables us to meet the growing demand from all existing and emerging markets.
Frequently Asked Questions
What is Pseudo Color?
Pseudo color, also called false color, transforms the thermal distribution of objects into visual pictures through the infrared thermal imaging system, displayed on the monitor in grey level or pseudo color. This enables obtaining the temperature distribution of objects. To make thermal analysis easier visually, images are represented using false colors that represent temperature differences.
How many pseudo color options does our thermal imaging module offer?
The module offers 10 pseudo color options: White Hot, Lava, Ironbow, Hot Iron, Medical, Arctic, Rainbow1, Rainbow2, Red Hot, and White Hot.
