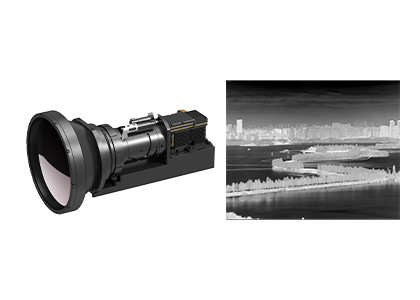

Large Image :  Cooled Thermal Module 640x512 / 15μM With Continuous Zoom Lens 60~240mm/F4

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN615B
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤20mK
Spectral Range: 3.7~4.8μm MW Frame Rate: 50Hz/100Hz
Size: 125x92x67mm Weight: ≤650g
High Light:

Cooled Thermal Module 640x512

,

Cooled Thermal Module 15uM

,

F4 Lens Thermal Camera Core

Cooled Thermal Module 640x512 / 15μM With Continuous Zoom Lens 60~240mm/F4

GAVIN615B Cooled MWIR Camera Module



GAVIN615B Compact Low Power Consumption 640x512 / 15μm MCT MWIR Cooled Camera Module



Product Description



GAVIN615B is a cooled mid wave thermal imaging module developed by Global Sensor Technology (GST). It consists of a 640x512 / 15µm HgCdTe MWIR IR detector with RS046 cryocooler, hardware electronics and various image processing algorithms are also embedded already to present sharp and clear thermal images.



Configured with RS046 cryocooler, the GAVIN615B is very compact in size, measuring 125x92x67mm in dimension and weighing less than 650g in weight. It’s stable power consumption is as low as 12w. With industrial standard cameralink interface, infrared camera or system integrator can design or integrate their own complete camera easily based on the GAVIN615B thermal imaging module.



GAVIN series cooled thermal module utilizes GST MCT &T2SL cooled IR detectors and integrates various image processing algorithms to output clear infrared images in the total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while present more target details at short distance.



Main Features



Meet Long Range Detection
• High thermal sensitivity

• Wide field of view
• Long range detection, aircraft can be detected at 60km away



Easy Integration into the System
• Cameralink/DVP interface, RAW/YUV image output
• A variety of continuous optical zoom lenses are available



Product Specifications



Model GAVIN615B
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS046
Spectral Range 3.7μm~4.8μm MW
Cooling Time (20°C) ≤7min
NETD (20°C) ≤20mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin
Analog Video PAL
Digital Video 16bit RAW/YUV: 16bit DVP/Cameralink Output
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 20~28VDC
Stable Power Consumption 12W
Dimension (mm) 125×92×67
Weight ≤650g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom
60~240mm/F4
15~300mm/F4
21~420mm/F4
35~690mm/F4



Industrial Applications



The GAVIN615B thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



Cooled Thermal Module 640x512 / 15μM With Continuous Zoom Lens 60~240mm/F4 0



About GST Infrared



Cooled Thermal Module 640x512 / 15μM With Continuous Zoom Lens 60~240mm/F4 1

FAQs



1. What is thermal sensiivity?

Thermal Sensitivity, also named NETD (Noise Equivalent Temperature Difference), is a key parameter for evaluating medium wave (MWIR) and long wave (LWIR) thermal imaging cameras. It is directly related to the clarity measured by the thermal imager. It is a numerical value representing the signal-to-noise ratio of the temperature difference and measured in milliKelvins (mK). The smaller the thermal sensitivity value, the higher the sensitivity and the clearer the image.



2.What is the difference between uncooled and cooled IR detectors?

There are currently two types of infrared thermal imaging sensors on the market, cooled and uncooled.

Uncooled IR detector operates at ambient temperature. It is based on semi-conductor industry and thus usually can be fabricated in big volume with small size and low cost. Uncooled IR detectors are widely used in portable/handheld/mobile devices.

Cooled IR detectors are packaged in a unit that keeps them at an extremely low temperature which shall be supported by a cryo cooler. They are much bigger, more expensive and less reliable than uncooled sensors, mainly due to the complex cooling systems they require. However, the cooled systems are incredibly sensitive and usually work with long focal length optics to achieve long range mission.
