Detailed Product Description
Resolution: 640x512 / 15μm NETD: ≤25mK
Spectral Range: 7.7~9.5μm (LW) Size: 142x58.5x71mm
High Light:

15uM Cooled Camera Modules

,

Cooled Camera Modules 640x512

,

RS058 T2SL LWIR Camera Core

640x512 15μM Cooled Camera Modules RS058 T2SL LWIR Camera Core

EYAS615L Cooled Camera Module

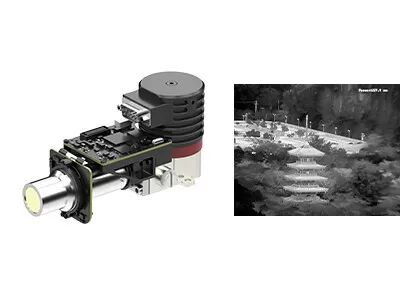

Cooled AD Module 640x512 / 15μm RS058 T2SL LWIR Cooled Infrared Module for Fast Integration



Product Description



EYAS series cooled AD modules have the pre-amplifier function to convert the analog signal from cooled IR detectors into a digital video stream output. It is available with different resolution formats and different wave bands. EYAS615L is a member of EYAS family with 640x512 / 15μm LWIR cooled detector and RS058 cryocooler integrated.



With EYAS series cooled AD module, it is easy for OEM customers to carry out fast acceptance test on GST infrared detectors, start rapid secondary development and shorten their development period of modules and complete products based on cooled infrared detectors



Global Sensor technology is a leading infrared detector supplier and OEM camera module manufacturer. The company covers an area of 30 thousand square meters with 20 thousand square meters clean room, which can provide customers with a stable supply of infrared products.



Main Features



- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target



Product Specifications



Model EYAS615L
IR Detector Performance
Resolution 640x512
Pixel Pitch 15μm
Cryocooler RS058
Spectral Range 7.7μm~9.5μm LW
Cooling Time (25°C) ≤5.5min
Optimal NETD (20°C) ≤25mK
Working Mode
Frame Rate 1~160Hz Adjustable
Working Mode Snapshot; ITR & Interlace Binning Integration Mode; Windows Mode; Anti-blooming
Electrical Specification
Standard External Interface QSH 60pin
Digital Video Cameralink: Output 16bit Raw Data
External Sync CC1: INT/Frame External Sync; CC2: MC External Sync
Communication Cameralink Serial Port: TFG+/-, TC+/-; 9600bps
Power Supply 1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
Stable Power Consumption 9W
Dimension (mm) 148×58.5×71
Weight ≤680g
Working Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each



Industrial Applications



The EYAS615L thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



640x512 15μM Cooled Camera Modules RS058 T2SL LWIR Camera Core 0



About GST Infrared



640x512 15μM Cooled Camera Modules RS058 T2SL LWIR Camera Core 1



FAQs



1. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.

2. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

3. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
