MCT MWIR Camera Core High Sensitivity With Proximity Board

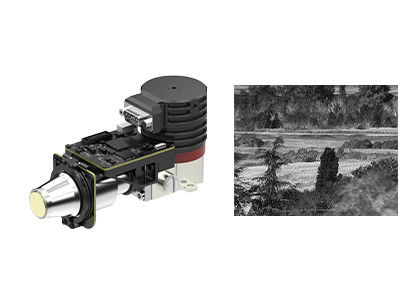

High Sensitivity 640x512@15μm RS058 MCT MWIR MCT MWIR Cooled Infrared Module With Proximity Board
EYAS615A AD module is an analog-digital cooled infrared module based on 640x512 formats 15μm pitch IR FPA. The typical NETD of EYAS615A is less than 17mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.
This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.
Therefore, EYAS615A module makes it easy for OEM customers to carry out fast acceptance test on GST C615M 640x512@15μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.
- Easy to Develop & Integrate
- Cameralink Interface Output 16bit Raw Data, Serial Port Control
- Integrated Structure, Dimensions are Consistent with Detector
- 5V Single-supply
- Capable of Capturing High Speed Moving Target
|IR Detector Performance|
|Spectral Range||3.7μm～4.8μm MW|
|Cooling Time (25°C)||≤6min|
|Optimal NETD (20°C)||≤17mK|
|Frame Rate||1~120Hz Adjustable|
|Working Mode||Snapshot; ITR/IWR Integration Mode; Windows Mode; Anti-blooming|
|Standard External Interface||QSH 60 pin|
|Digital Video||Cameralink: Output 16bit Raw Data|
|External Sync||CC1: INT/Frame External Sync; CC2: MC External Sync|
|Communication||Cameralink Serial Port: TFG+/-, TC+/-; 9600bps|
|Power Supply||1 Channel Imaging Panel: 5V
1 Channel Cryocooler: 24V
|Stable Power Consumption||7W|
|Working Temperature||-40°C ~ +60°C|
|Vibration Magnitude||Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.
1. In which industries are focal plane array infrared detectors used in?
Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.
2. What are the characteristics of cooled & uncooled infrared focal plane detector?
Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.
3. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.
4. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.
5. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
