1280x1024 12μm Cooled Camera Modules Cores

I'm Online Chat Now

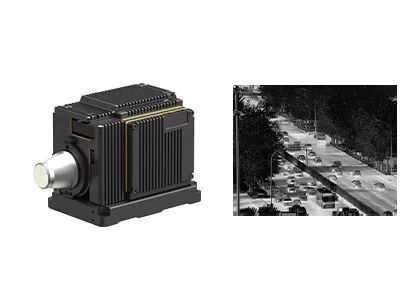

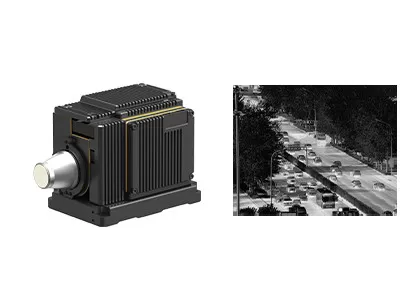

1280x1024 12μm Cooled Camera Modules Cores

1280x1024 12μm Cooled Camera Modules Cores
1280x1024 12μm Cooled Camera Modules Cores

Large Image :  1280x1024 12μm Cooled Camera Modules Cores

Product Details:
Place of Origin: Wuhan, Hubei Province, China
Brand Name: GST
Certification: ISO9001:2015; RoHS; Reach
Model Number: GAVIN1212
Payment & Shipping Terms:
Minimum Order Quantity: 1 Piece
Price: Negotiable
Payment Terms: L/C, T/T
Detailed Product Description
Technology: MCT / HgCdTe Resolution: 1280x1024 / 12μm
NETD: ≤20mK Spectral Range: 3.7~4.8μm
Size: 165x86x107mm Weight: ≤1600g
High Light:

1280x1024 Cooled Camera Modules

,

1600g Cooled Camera Modules

GAVIN1212 by GST Infrared



Large Array 1280x1024 / 12μm Cooled Infrared Thermal Camera Core for Ultra Clear Thermal Imaging



Product Description



GAVIN1212 high resolution thermal camera module is one of GAVIN series with large array 1280x1024@12μm MWIR detector and detector dewar cooler (ddc) inside. Various image processing algorithms are already embedded in the GAVIN1212 electronics to output clear infrared images in the total darkness or bad weather conditions. It can detect and recognize risks and threats at long distance while present more target details at short distance.



GAVIN series is the standard cooled infrared module developed by Global Sensor Technology (GST). It is available with different resolution formats, different wave bands and also different continuous optical lens options.



As a leading thermal imaging module manufacturer, Global Sensor Technology provides customers with a wide variety of mature integration solutions. By using GST infrared camera modules, it is convenient for them to conduct secondary development and reduce their time of independent research and development.



Main Features:



- Meet the Needs of Long Range Detection

- High Sensitivity, NETD≤20mK

- Wide Field of View, Resolution up to 1280x1024

- Easy Integration into the System

- DVP/Cameralink Interface, RAW/YUV Image Output

- A Variety of Continuous Optical Zoom Lenses are Available



Product Specifications



Model GAVIN1212
IR Detector Performance
Resolution 1280x1024
Pixel Pitch 12μm
Cryocooler RS058F
Spectral Range 3.7μm~4.8μm MW
Cooling Time(20°C) ≤8min
NETD (20°C) ≤20mK
Image Processing
Frame Rate 50Hz/100Hz
Dimming Mode Linear/Histogram/Mixed
Digital Zoom ×1/×2/×4
Image Direction Horizontally/Vertically/Diagonally Flip
Image Algorithm NUC/AGC/IDE
Electrical Specification
Standard External Interface J30JZ 25pin; HDMI Special Output Interface
Analog Video /
Digital Video HDMI Output: YUV
Cameralink Output: 16bit RAW/YUV
External Sync Frame External Sync: RS422 Level
Communication RS422, 115200bps
Power Supply 24V±1V
Stable Power Consumption 16W
Dimension (mm) 165x86x107
Weight ≤1600g
Operation Temperature -40°C ~ +60°C
Vibration Magnitude Vibration: GJB Vehicle-mounted High Speed Transport
Shock: Half-sine Wave, 40g 11 ms, 3 Axis 6 Direction 3 Times Each
Optical Lens
Optional Lens Continuous Zoom: 37.5~750mm/F4
Fixed Zoom: 19mm/F2; 40mm/F2; 240mm/F2



Industrial Applications



The GAVIN1212 thermal infrared camera module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.



1280x1024 12μm Cooled Camera Modules Cores 0



Our Advantages



1280x1024 12μm Cooled Camera Modules Cores 1



FAQs



1. In which industries can the infrared detectors/thermal camera cores be used?



GST thermal camera modules are widely used in many industries such as:

- Thermography: Power Maintenance, Machine Vision, Building HVAC, Metallurgical Petrochemical, Predictive Maintenance, Epidemic Prevention

- Security & Monitoring: Safe City, Infrastructure Monitoring, Border Security, Maritime Cruising, Mining Safety

- Firefighting & Rescue: Forest Fire Prevention, Fire Prevention, Search & Rescue

- UAVs payload: Equipment Inspection, Enforcement & Rescue, Firefighting Application, Animal Observation

- Personal Vision: Outdoor Leisure, Animal Observation, Enforcement Patrol

- ADAS: Autonomous Driving, Advanced Driver Assistant System, Special Vehicles

- AIoT: Smart Home, Intelligent Hardware, Smart Care, Robots

- Others: Enhanced Flight Vision System, Gas Detection, Agriculture & Graziery, Scientific Research.
