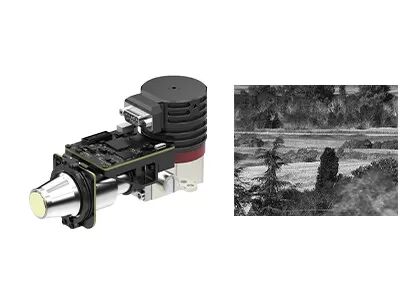

High Sensitivity MCT MWIR Infrared Camera Core With Proximity Board

High Sensitivity 640x512/15μm RS058 MCT MWIR MCT MWIR Cooled Infrared Module With Proximity Board

EYAS615A AD module is an analog-digital cooled infrared module based on 640x512 formats 15μm pitch IR FPA. The typical NETD of EYAS615A is less than 17mK. The high sensitivity ensures detection or recognition for very tiny infrared radiation difference at very long distance.

This AD module includes a proximity board that provides the FPA timing, and the sensitive power supplies. In addition, the Camera Link interface outputs 16bit raw data which highly simplifies the integration of the detector to the system.

Therefore, EYAS615A module makes it easy for OEM customers to carry out fast acceptance test on C615M 640x512/15μm cooled infrared detector, start rapid secondary development and shorten their development period of cooled infrared modules or complete infrared thermal cameras or systems based on cooled infrared detectors.

- Easy to Develop & Integrate

- Cameralink Interface Output 16bit Raw Data, Serial Port Control

- Integrated Structure, Dimensions are Consistent with Detector

- 5V Single-supply

- Capable of Capturing High Speed Moving Target

The EYAS615A thermal imaging module is widely used many areas such as Remote Monitoring System, Flight Vision Enhancement System, Multi-sensor Payload etc.

• Deep Technical Expertise

With many years of experience in the research, development, and application of infrared sensor technology, we have built strong capabilities across chip design, wafer fabrication, packaging and testing, as well as system integration. Our solid foundation enables us to continuously deliver innovative and reliable products that meet evolving market demands.

• Focused on Innovation and Practical Implementation in Infrared Sensing

We are committed to driving technological breakthroughs in thermal imaging, constantly pushing the boundaries in NETD,SWaP,and operating temperature. Our products consistently lead in applications across security, industrial monitoring, intelligent systems, and more.

• Diversified Product Portfolio

Backed by independent R&D and multiple technical pathways, we offer a comprehensive range of infrared detection components—both cooled and uncooled—providing tailored solutions for a wide variety of industries.

• Rigorous Reliability Validation Ensures Quality Assurance

Supported by a robust quality management system, our products undergo multiple testing procedures throughout production to ensure long-term stability and reliability.

• Professional Technical Support and Joint Development Services

Our engineering team works closely with customers’ R&D and product teams to accelerate system integration, improve efficiency, and shorten time-to-market. Your success is our shared mission.

1. In which industries are focal plane array infrared detectors used in?

Infrared focal plane detector is the core component of thermal imaging system, and is the key to detect, identify and analyze infrared information of objects. It has a wide range of applications in traffic, inspection, security monitoring, meteorology, medicine and other industries.

2. What are the characteristics of cooled & uncooled infrared focal plane detector?

Infrared focal plane detectors can be divided into cooled infrared focal plane detector and uncooled infrared focal plane detector. Cooled infrared detector works at a low temperature vacuum environment with high sensitivity and can distinguish more subtle temperature differences, while uncooled infrared focal plane detector does not need a cryogenic environment and can work at room temperature.

3. What is infrared thermal imaging?
In nature, all objects whose temperature is higher than absolute zero (- 273 ℃) can radiate infrared rays. By using the infrared camera detector to measure the infrared radiation temperature difference between the target itself and the background, you can get different infrared images, which are also called thermal images.


4. How do infrared detectors work?
Infrared radiation that emitted by target enters the sensing range of the thermal detector, then the infrared detector converts the radiation signal of different intensity into the corresponding electrical signal, and then through amplification and video processing, forms the infrared image that can be observed by the naked eyes.

5. What are the advantages of cooled infrared detectors?
The cooled infrared focal plane detector operates at a low temperature which is provided by a detector dewar cooler (ddc). It has high sensitivity and can distinguish more subtle temperature difference than uncooled infrared detector. It can detect, identify and recognize objects at a very long range which is more than ten kilometers away. The structure of cooled detector is very complex which results in a relatively high cost than uncooled detector.
